ROYAL 9917-DA-1×8/2×4-12G

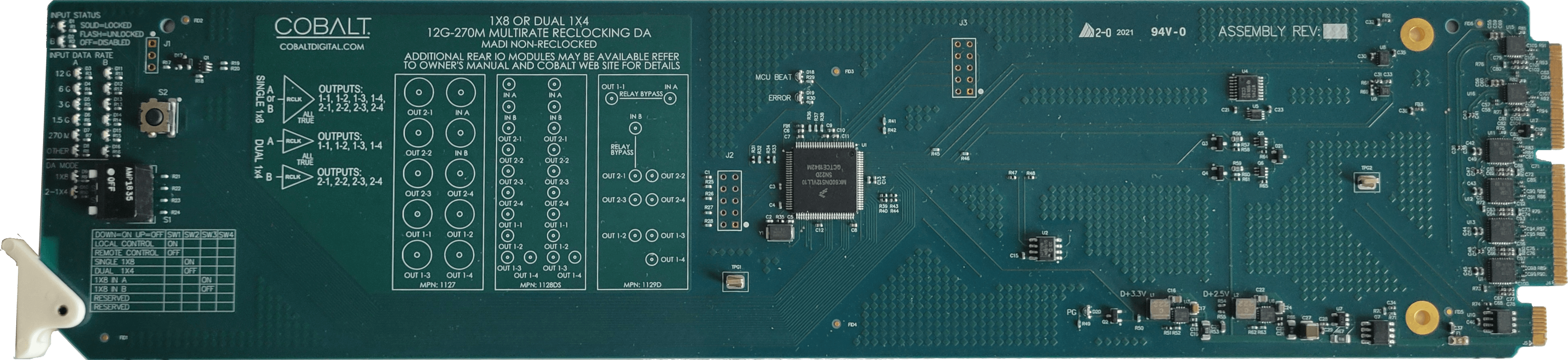

The Cobalt® Royal 9917-DA-12G-1×8/2×4 Dual-Channel 12G/6G/3G/HD/SD/ASI/MADI Reclocking Distribution Amplifier is a two-channel, multi-rate SDI distribution amplifier capable of equalizing and reclocking 12G, 6G, 3G, HD, SD, ASI, and MADI signals. Excellent receiver EQ performance allows for up to 160m cable lengths for HD signals.

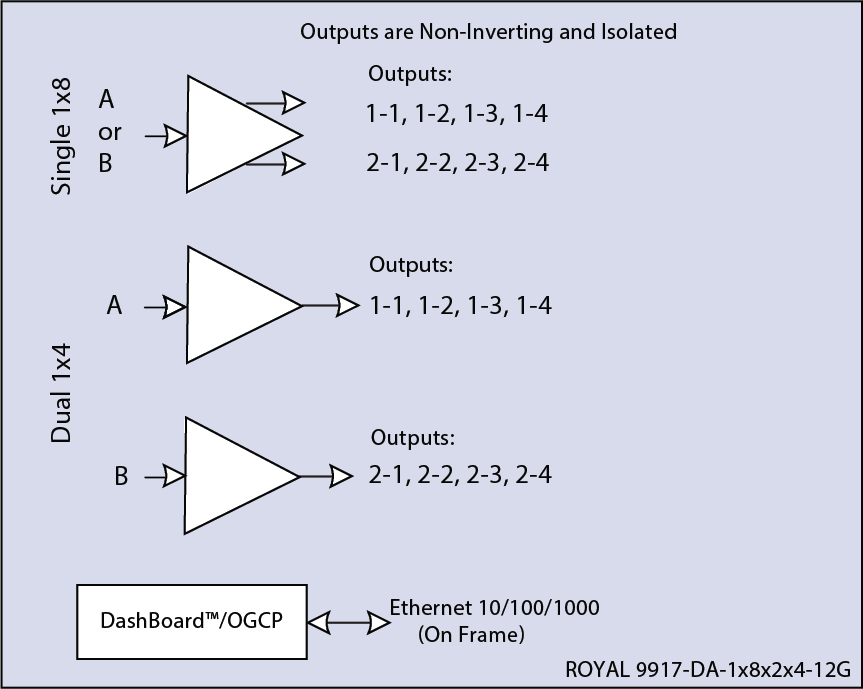

The Royal 9917-DA-12G-1×8/2×4 can be set up as either a single-channel 1:8, dual-channel 1:4, or 1:8 with failsafe using DashBoard™ remote control software or card-edge switches. In failsafe mode, the card automatically switches to the secondary input if the primary input is lost.

FEATURES

• Supports 12G/6G/3G/HD/SD-SDI/ASI/MADI
• Dual or single input with user-configurable modes
• Automatic rate detection for all industry-standard data rates
• Equalize up to 160m of Belden 1694A cable at 1.485 Gbit
• Not-inverting and isolated outputs
• Failsafe mode automatically switches to secondary input on loss of primary input
• Passes embedded audio, all ancillary data including closed caption and time code
• HDR Video support
• Available high-density rear modules allow up to 20 cards per frame
• Remote control/monitoring via Dashboard ™ software or OGCP-9000 remote control panels
• Hot-swappable
• Five-year warranty

SPECIFICATIONS

Electrical

• Power: 3 Watts

12G/6G/3G/HD/SD-SDI Inputs

• Number of Inputs: 2
• Standard: SMPTE 424M, 292M, and 259M
• Return Loss: >15 dB at 5 MHz – 1.485 GHz
• >10 dB at 1.5 GHz to 3 GHz

Cable Length (tested with Belden 1694A) – Please note that cable length is dependent on the rear I/O module. RM20-9917-A Rear I/O Module

• 12Gbps – 55m
• 6Gbps – 70m
• 3Gbps – 150m
• 1.5Gbps – 170m
• 270Mbps – 440m

RM20-9917-B/S-HDBNC Rear I/O Module

• 12Gbps- 25m
• 6Gbps – 60m
• 3Gbps – 120m
• 1.5Gbps- 140m
• 270Mbps – 250m

RM20-9917-B-HDBNC Rear I/O Module

• 12Gbps – 20m
• 6Gbps – 40m
• 3Gbps – 100m
• 1.5Gbps – 100m
• 270Mbps – 150m

REAR MODULES

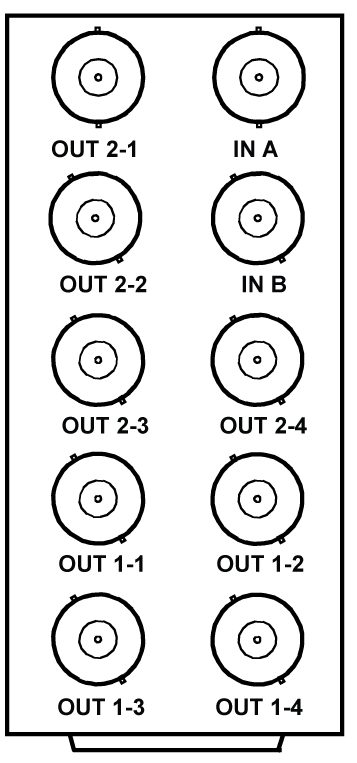

RM20-9917-A

• (2) 12G/6G/3G/HD/SD-SDI/ASI/MADI Inputs
• (8) 12G/6G/3G/HD/SD-SDI/ASI/MADI Outputs
• (All coaxial connectors are BNC.)

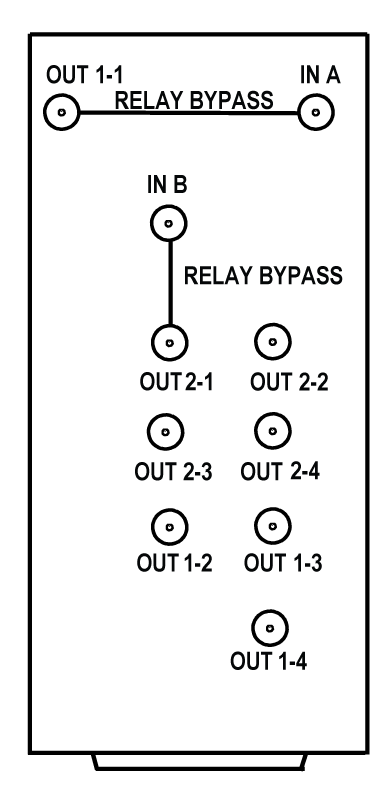

RM20-9917-B-HDBNC

• (2) 12G/6G/3G/HD/SD-SDI/ASI/MADI Inputs
• (8) 12G/6G/3G/HD/SD-SDI/ASI/MADI Outputs with Relay Bypass
• (All coaxial connectors are HD-BNC.)

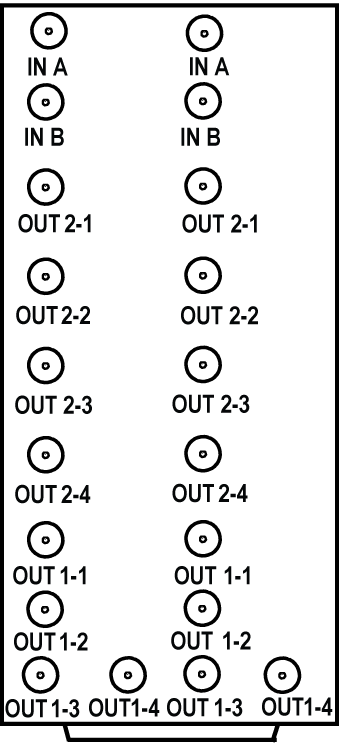

RM20-9917-B/S-HDBNC

• (2) 12G/6G/3G/HD/SD-SDI/ASI/MADI Inputs
• (8) Reclocked 12G/6G/3G/HD/SD-SDI/ASI/MADI Outputs 91X8 OR 1/4 da mODES)
• (Connections are per-card. All coaxial connectors HD-BNC.)

ORDERING INFORMATION

RM20-9917-A 20-Slot Frame Rear I/O Module (Standard Width) (2) 12G/6G/3G/HD/SD-SDI/ASI/MADI Inputs, (8) 12G/6G/3G/HD/SD-SDI/ASI/MADI Outputs (BNC). Rear I/O for ROYAL 9917DA-1×8/2×4-12G card.

RM20-9917-B-HDBNC 20-Slot Frame Rear I/O Module (Standard Width) (2) 12G/6G/3G/HD/SD-SDI/ASI/MADI Inputs with Relay Bypass, (8) 12G/6G/3G/HD/SD-SDI/ASI/MADI Outputs (HDBNC). Rear I/O for ROYAL 9917DA-1×8/2×4-12G card.

RM20-9917-B/S-HDBNC 20-Slot Frame Rear I/O Module (Standard Width, Split: supports 2 cards) (2) 12G/6G/3G/HD/SD-SDI/ASI/MADI Inputs, (8) Reclocked12G/6G/3G/HD/SD-SDI/ASI/MADI Outputs (1×8 or 1×4/1×4 DA Modes). Connections are per card, all connections are HD-BNC. Rear I/O for ROYAL 9917DA-1×8/2×4-12G card.
