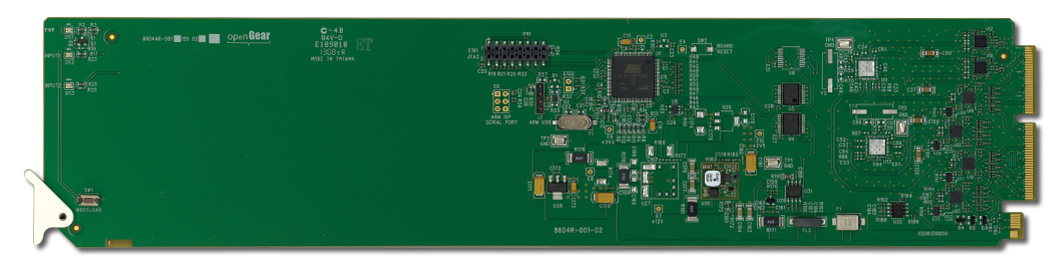

DRA-8804

Dual High Performance 3G Reclocking Distribution Amplifier

Product by: Ross Video Limited

  • Overview
  • Flow Diagrams
  • Rear Module

2 independent channels of 3G / HD / SD SDI distribution, configurable as an 1×16 with A/B input failover protection.

The DRA-8804 is a 2 channel, 3G distribution amplifier, redesigned using the latest technology and optimized to achieve the industry’s best EQ performance offering cable lengths up to 120m at 3G. Equalization and reclocking is performed on all common serial digital signals, including 3G / HD / SD SDI. Non-inverting output drivers, using the -R2 rear module, makes this ideal for distributing DVB-ASI signals as well.

With up to 8 outputs per independent input channel, the DRA-8804 can be used in space critical environments as a dual 1×8 DA, when paired with the –R2H HD-BNC rear module. This configuration allows for up to 20 1×8 DAs in a single openGear® frame, using 10 cards. With the standard 10 BNC rear module, -R2, the DRA-8804 operates as a dual 1×4 distribution amplifier utilizing all the non-inverting outputs.

Each channel is fully independent, and can run at different data rates. LED indicators at the front of the module identify the presence of incoming video, and the data rate for each independent channel.

The DRA-8804 can be configured as a single 1×16 DA and enabled with A/B input failover protection to use a backup input source when the primary input source is lost.

Features



  • 2 independent channels of SDI distribution on one card
  • Equalizes and reclocks all SDI signals from 143Mb/s to 2.97Gb/s
  • Non-inverting outputs, using the -R2 rear module, perfect for DVB-ASI distribution
  • Input EQ 3G- 120m @2.97Gb, HD – 200m @1.485Gb, SD -500m @270Mb
  • Configurable to 1×16 with A/B input failover protection (using –R2H rear module)
  • Automatic detection of incoming data rate
  • Standard BNC and HD-BNC rear module I/O options



  • Up to 20 channels of 1×8 distribution in a single frame
  • LED indicators for signal presence and data rate for each channel
  • Excellent input / output return loss specifications
  • 10 DRA-8804 cards in the OG3-FR frames
  • 5-year transferable warranty
