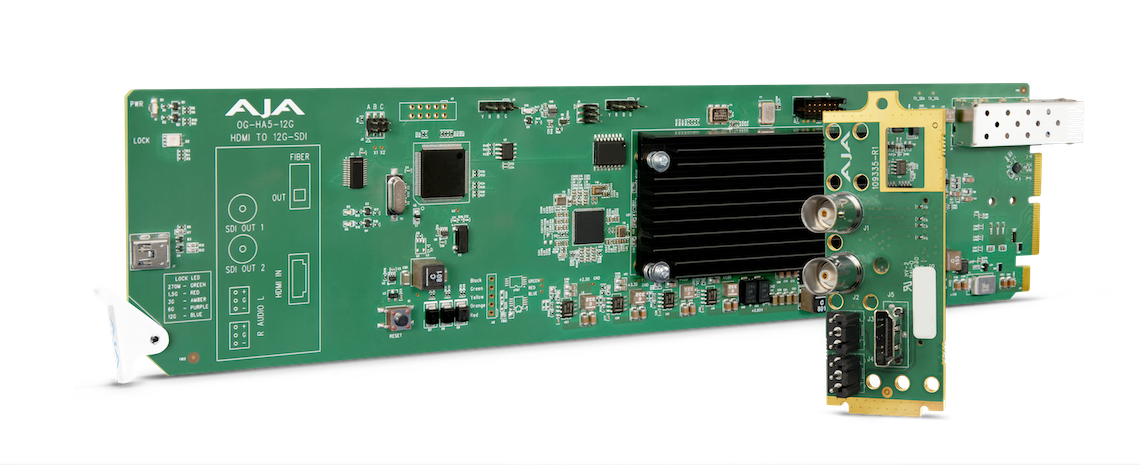

OG-HA5-12G
HDMI 2.0 to 12G-SDI Converters
Product by: AJA Video Systems, Inc.
Overview

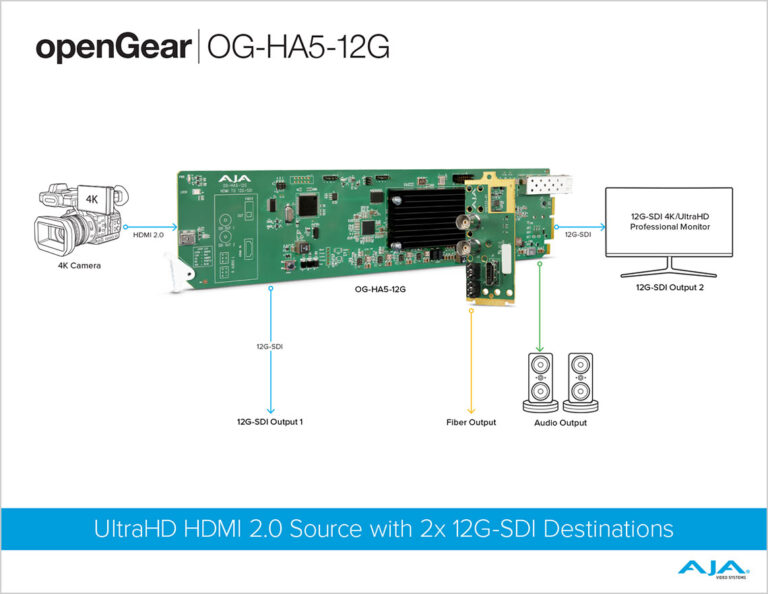

AJA’s OG-HA5-12G converts an HDMI 2.0 input to 12G-SDI for 4K/UltraHD single link outputs. OG-HA5-12G includes two 12G-SDI distribution amplifier outputs with 8 or 2-channels of embedded audio from an HDMI source.
OG-HA5-12G also supports Extended Display Identification Data (EDID) emulation, which ensures the connected source continuously supplies custom preferred video formats on output.
OG-HA5-12G-T and OG-HA5-12G-T-ST Fiber SFP equipped models are single channel transmitters capable of extending HDMI 4K/UltraHD signals over long distances, up to 10km over a single LC or ST Fiber link, respectively. These models ship with SFPs installed and include all functionality of the OG-HA5-12G, with the added benefit of extending audio and video signals further.
Features
- Convert HDMI 2.0 to 4K/UltraHD 60 fps to 12G-SDI with a second mirrored output
- Supports up to 60p input at 4:4:4/4:2:2/4:2:0
- Supports 12-bit workflows
- EDID LFR & HFR Emulation up to UltraHD 60p
- Real time HDMI HDR Infoframe data reporting
- HDR signaling metadata pass-through and optional override
- Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
- Embedded audio can be selected from the HDMI or Analog audio inputs
- Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
- Monitor and control via Ross DashBoard software
- 14 watts max per card
- Five year warranty
- Starting at $999 US MSRP*
Industry-Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
OpenGear products are covered by a generous five year international warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
