OG-12G-AMA
12G-SDI Analog Audio Embedder/Disembedder
Product by: AJA Video Systems, Inc.
Overview

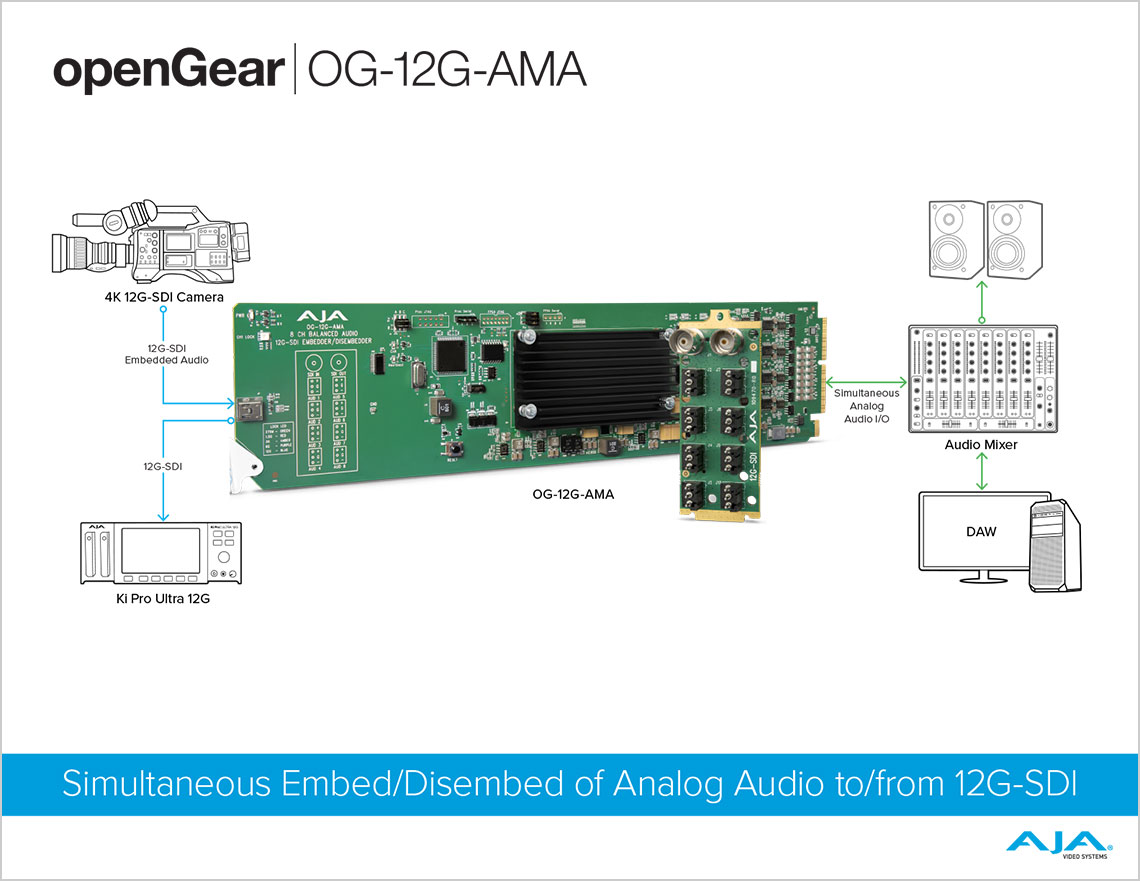

The OG-12G-AMA is an openGear 8-channel analog audio embedder/disembedder, that supports 12G-SDI input and output up to 4K/UltraHD, and automatically detects and configures to the input video standard. It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality.
Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 12G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.
Designed for use in high density openGear 2RU frames, including AJA’s OG-X-FR frame. Ross DashBoard Software supports Windows®, macOS®, and Linux® and provides convenient, configuration, monitoring, and control options for openGear cards and frames via a connected computer or over local network with DashBoard’s web UI.
Features
- 12G-SDI analog audio embedder/disembedder
- 8-channel balanced analog audio I/O
- 8x 3-Pin Terminal Block connectors (included)
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
- Monitor and control with Ross DashBoard software
- 8 watts max per card
- Five year warranty
- Only $1245 US MSRP*
Industry-Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
OpenGear products are covered by a generous five year international warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
