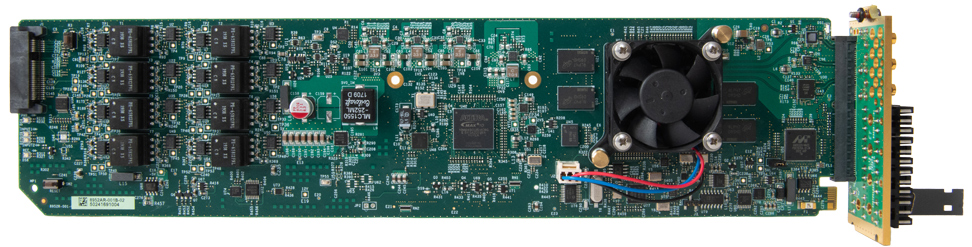

AMX-8952

The AMX-8952 4K UHD 12G-SDI Embedder / De-embedder provides a cost-effective solution that allows facility engineers and systems integrators to incorporate discrete audio signals into HD, 3G and 12G-SDI infrastructures. As an openGear solution, it is part of an open eco-system of products that use industry-standard frames and leverage DashBoard’s unified control.

The AMX-8952 family consists of 3 variants supporting popular discrete audio standards:

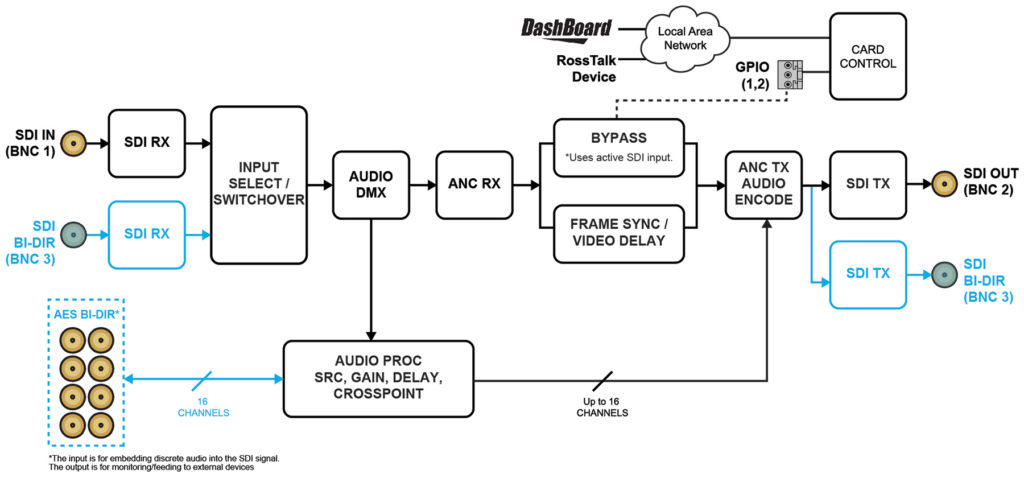

• AMX-8952-A: 16 channels of discrete AES unbalanced
• AMX-8952-B: 16 channels of discrete AES balanced

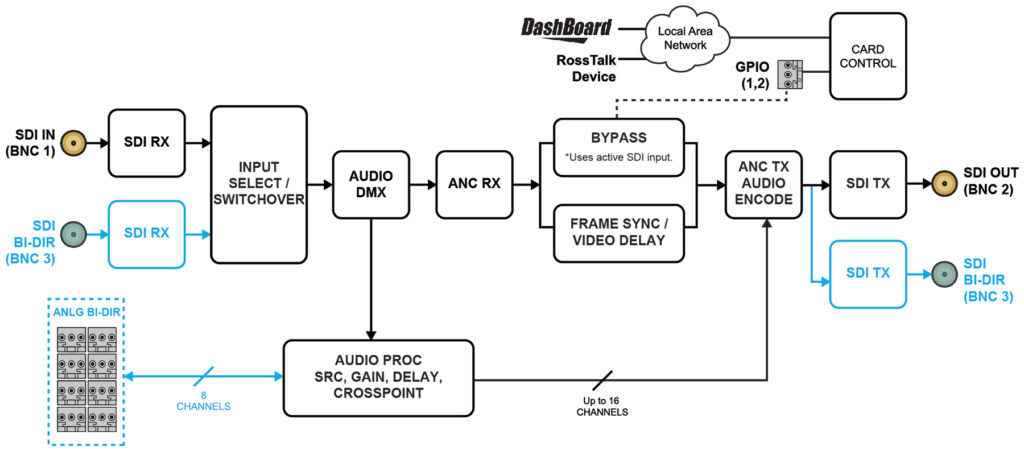

• AMX-8952-C: 8 channels of discrete analog

AMX-8952 is aimed at solving the following common embedded audio workflow problems:

• SDI Audio embedder / disembedder with optional 12G SDI support
• Synchronize video using an optional frame synchronizer
• Support for 16 channels of discrete AES or 8 channels of discrete analog audio
• Synchronize audio with built-in high-quality sample rate conversion
• Adjust video delay to at least 1 second in all supported video formats
• Adjust audio on a per-channel pair basis with built-in shuffling, gain and delay capabilities
• User-configurable embedder or disembedder mode to quickly adapt to changing needs
• Configurable UHD SDI I/O
  • Input mode:
    • Loss of input failover protection
    • Clean/Quiet switchover using GPI, RossTalk or DashBoard CustomPanel
  • Output mode:
    • Copy of primary output to facilitate distribution
• High-density with up to 10 channels per openGear chassis
• Protect critical path using loss of input failover or Clean/Quiet switching capabilities
