ROYAL 9915DA-1×16-12G
12G/6G/3G/HD/SD-SDI 1×16 Reclocking Distribution Amplifier supports an input channel which is distributed to 16 DA outputs
Product by: Cobalt Digital

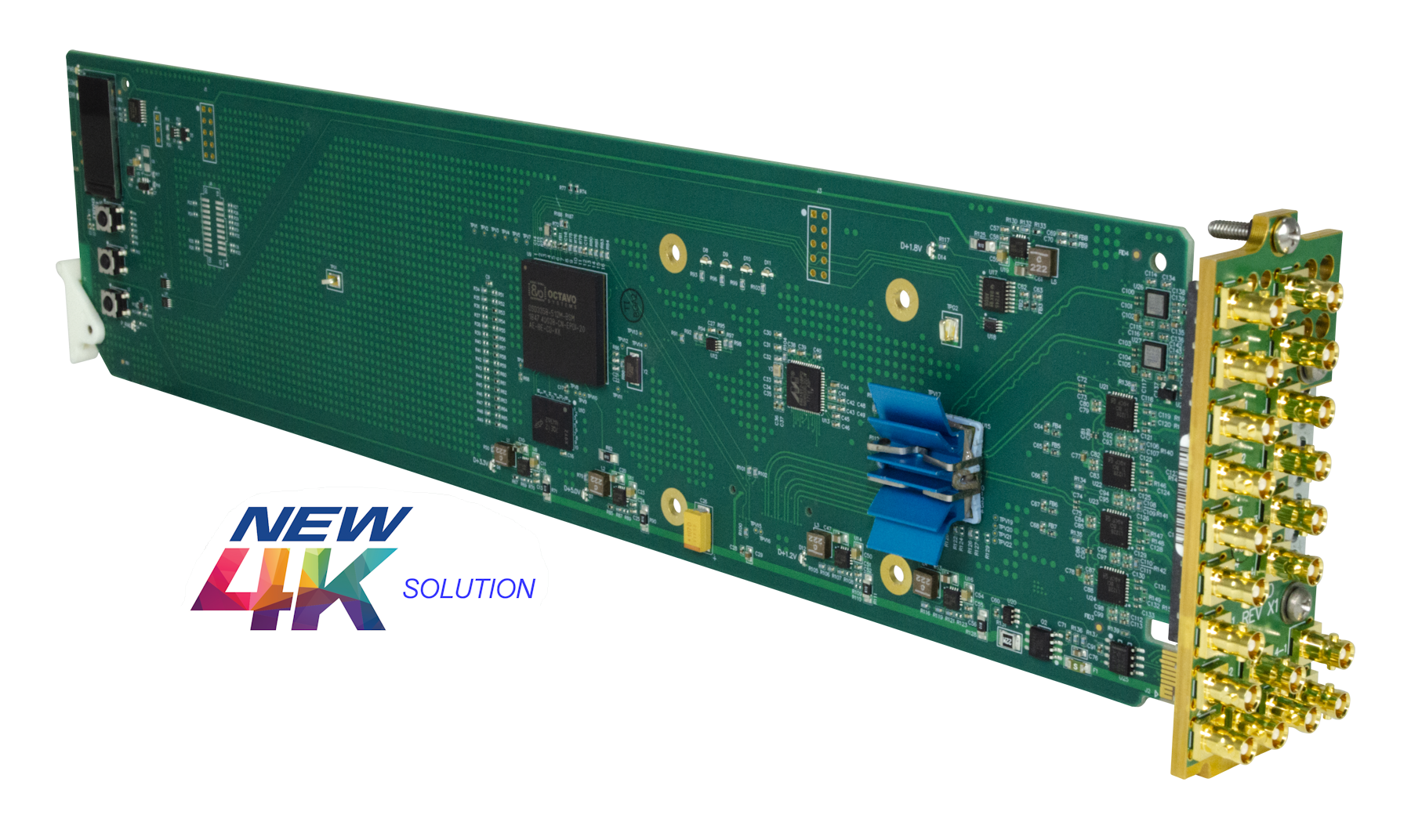

The Cobalt® 9915DA-1×16-12G 12G/6G/3G/HD/SD-SDI 1×16 Reclocking Distribution Amplifier supports an input channel which is distributed to 16 DA outputs. The 9915DA-1×16-12G also, as an option, can support an SFP-based fiber input and fiber DA outputs.
As demand for 4K continues to rise, distribution of 12G-SDI signals within a rackspace becomes increasingly important. The 9915DA-1×16-12G allows for copper runs of up to 45 meters, reaching most equipment within a rack room or truck.
Up to 10 of the 9915DA-1×16-12G cards can be installed in a frame to provide 10 channels of input, with distribution to up to 160 outputs. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
FEATURES:
- Full support of 12G/6G/3G/HD/SD-SDI and ASI/DVB
- Input data rate auto-detection for all industry-standard data rates
- One-card solution for distribution of 4K/8K content over 12G-SDI interfaces
- Card display and DashBoard status input lock indicators
- Hot-swappable
- Five year warranty
SPECIFICATIONS:
Power <10 Watts12G / 6G / 3G / 1.5G / 270M Serial Digital Interface Input/Output (1) 75Ω HDBNC Connector Input (max). (16) 75Ω HDBNC Connectors Output (max). SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant
Fiber Transmit Output (typ. with optional fiber Tx SFP) LC connector Fiber Wavelength, Tx: 1310 nm Tx Power: -5.0 dBm (min)
Fiber Receive Input (typ. with optional fiber Rx SFP) LC connector Receive Sensitivity: -23 dBm; 1260 to 1620 nm
OPTIONS:
-DA-SFP Adds daughter card to support two externally-accessible SFP cages to the 9915DA-1×16-12G card

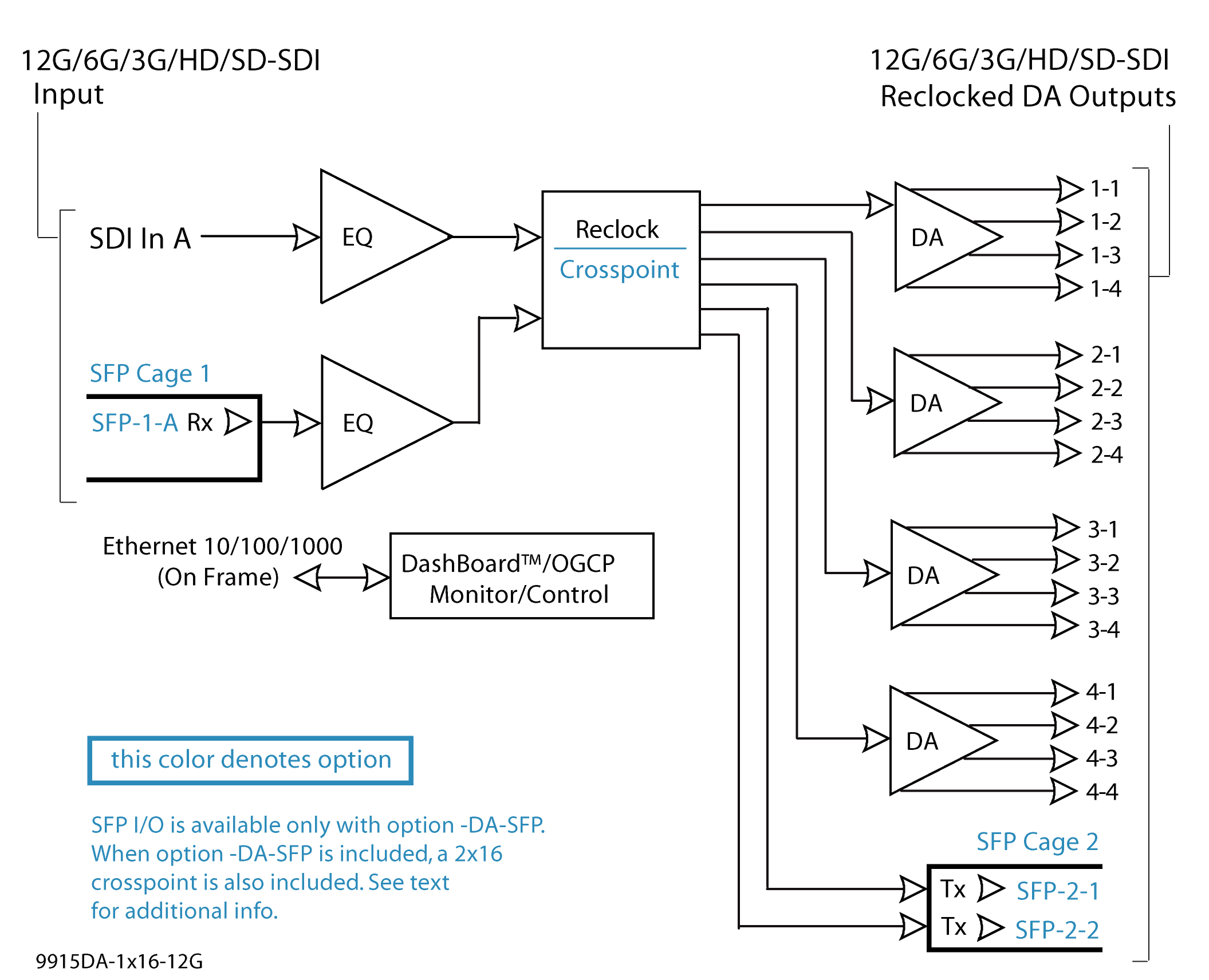

Note: When option -DA-SFP is included, a second input (fiber OE) is in turn added to the card. As such, this exposes a full 2×16 crosspoint that allows both the coax and fiber inputs to be independently and simultaneously routed to various card outputs.
-SFP-OE-12G SFP Optical UHD Single Receiver
-SFP-EO-12G SFP Optical UHD Single Transmitter
-SFP-2EO-12G SFP Optical UHD Dual Transmitter
-SFP-OE SFP Optical Single Receiver
-SFP-EO SFP Optical Single Transmitter
-SFP-2EO SFP Optical Dual Transmitter
-SFP-H-TO-S SFP HDMI-to-HD/SD-SDI Receiver
-SFP-S-TO-H SFP HD/SD-SDI-to-HDMI Transmitter
-SFP-EO-CWDM SFP Optical Single CWDM Transmitter (see Ordering Info for wavelengths and corresponding ordering codes)
-SFP-2EO-CWDM SFP Optical Dual CWDM Transmitter (see Ordering Info for wavelengths and corresponding ordering codes)

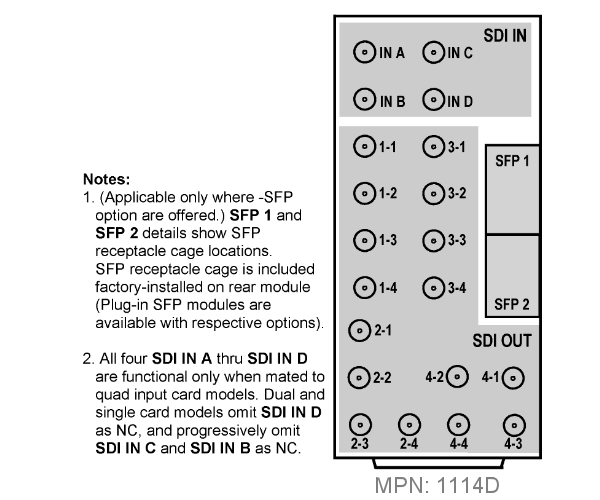

REAR I/O MODULE:
RM20-9915-A-HDBNC
- (1) SDI In (SDI IN A)
- (16) SDI Out
- (2) SFP cage access (All coaxial connectors HD-BNC.)
Note: Rear module has factory-installed SFP module receptacles on rear module. Plug-in SFP functionality is available with option -DA-SFP (SFP support daughtercard) and -SFP plug-in module options. (See Ordering Information.)
Note: On 9915DA-1×16-12G model, SFP cage 1 supports only Rx (OE) type SFP. SFP cage 2 supports only Tx (EO) type SFPs. (See Ordering Information.)
Note: SFP modules, when inserted into rear module SFP receptacles, can dimensionally extend past the right “boundary” of the rear module. In rare cases, this can present interference issues if a rear module to the right of SFP rear module also has adjacent large-footprint connectors that can extend across the rear module boundary. Plan frame buildout accordingly in these cases.
ORDERING INFORMATION:
Rear Module:
- RM20-9915-A-HDBNC 20-Slot Frame Rear I/O Module (Standard Width) (1) 12G/6G/3G/HD/SD-SDI Input (IN B thru IN D NC), (16) 12G/6G/3G/HD/SD-SDI Outputs (all coaxial connectors HD-BNC)
Options (Hardware-based):
- -DA-SFP Adds daughter card to support two externally-accessible SFP cages to the card
- -SFP-OE-12G 12G/6G/3G/HD/SD-SDI UHD Single Receiver SFP Module; 1260 nm – 1620 nm; type LC connector
- -SFP-EO-12G 12G/6G/3G/HD/SD-SDI UHD Single Transmitter SFP Module; 1310 nm; type LC connector
- -SFP-2EO-12G 12G/6G/3G/HD/SD-SDI UHD Dual Transmitter SFP Module; 1310 nm; type LC connectors
- -SFP-OE 3G/HD/SD-SDI Single Receiver SFP Module; 1260 nm – 1620 nm; type LC connector
- -SFP-EO 3G/HD/SD-SDI Single Transmitter SFP Module; 1310 nm; type LC connector
- -SFP-2EO 3G/HD/SD-SDI Dual Transmitter SFP Module; 1310 nm; type LC connectors
- -SFP-H-TO-S HDMI-to-HD/SD-SDI Receiver SFP Module
- -SFP-S-TO-H SFP HD/SD-SDI-to-HDMI Transmitter SFP Module
- -SFP-EO-CWDM-WX Single CWDM Transmitter SFP Module; type LC connector
- -SFP-2EO-CWDM-WX Dual CWDM Transmitter SFP Module; type LC connectors
- Use fiber wavelength codes below for CWDM SFPs when ordering. Available wavelengths (in nm) are as follows: 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610. In “WX” places in part number, substitute code for wavelengths in each place as listed below:
- -27: 1270nm -29: 1290nm -31: 1310nm -33: 1330nm -35: 1350nm -37: 1370nm -39: 1390nm -41: 1410nm -43: 1430nm -45: 1450nm -47: 1470nm -49: 1490nm -51: 1510nm -53: 1530nm -55: 1550nm -57: 1570nm -59: 1590nm -61: 1610nm (Example: -SFP-EO-CWDM-27 has 1270 nm Tx wavelength)
