9905-MPx

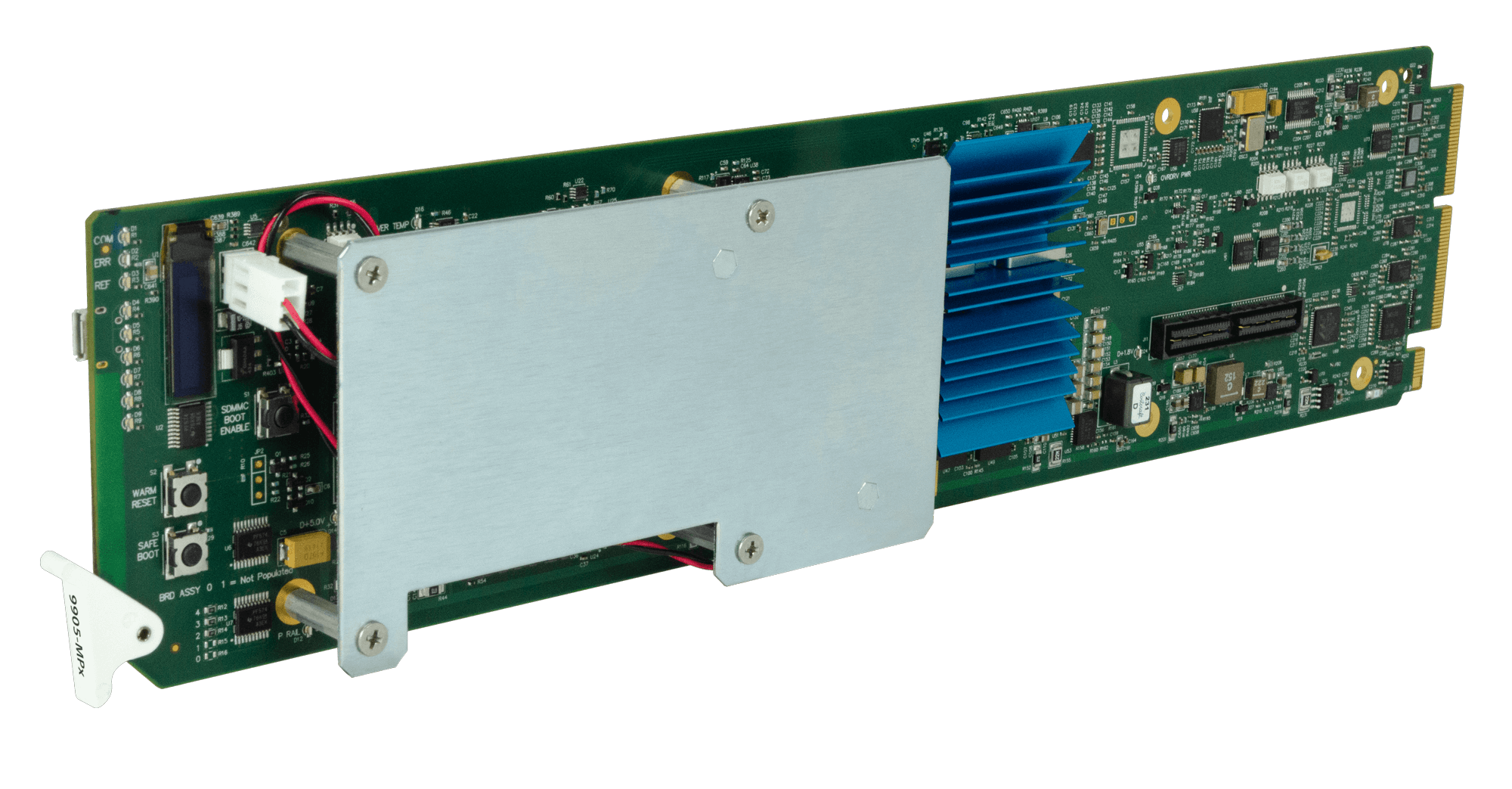

The Multi-Path 9905-MPx 3G/HD/SD Quad-Path Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor is a Cobalt® next-generation advanced scaler/frame synchronizer for the openGear® platform. The 9905-MPx provides four independent signal paths of UDX / frame sync / audio embedding and de-embedding on a single open-Gear® card. Using our HPF-9000 20-slot frame, this provides up to 24 channels (6 cards) of processing in a single frame. The 9905-MPx represents a new level of openGear packaging density!

The 9905-MPx provides high-density that offers unprecedented multi-input support and flexibility. Independent up/down/cross convert scalers are specifically designed for broadcast video formats, with full ARC control suitable for conversions to or from 4:3 and 16:9 aspect ratios. Discrete AES and MADI audio embedding/routing/mixing/de-embedding to any of four processing paths is supported. Standard 3D LUT feature and available color correction provide accommodation of SDR and HDR processing for downstream HDR systems.

Card control/monitoring is available via DashBoard user interface or Cobalt’s RESTful-based Reflex protocol. The 9905-MPx can be software-converted to a 4K Quad-Link Input SDM/2SI 4K UDX/Frame Sync card with an optional software license.

• Multi-Path design offers four independent UDX / frame sync paths (channels) per card
• Flexible AES and MADI embed/de-embed for each path
• Multi-input RP168 clean switch, with manual selection or GPI controlled input selection
• Up/Down/Cross Conversion with user ARC control. 3D-LUT is a standard feature for all paths.
• Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p
• Independent four-path ANC bridging, including timecode and closed-captioning processing
• Noise Reduction and Detail Enhancement provide image quality optimization
• Remote control/monitoring via Dashboard™ software, OGCP-9000 remote control panels, or Cobalt’s RESTful-based Reflex protocol
• Five-year warranty

Note:

• • Options denoted as “+” are software-based options which are available on new product when ordered or can be customer field-installed as a software upload upgrade. Unless otherwise noted, software options are per-card based. Options which are per-path based are identified as such.
  • Options or ordering line items denoted as “-“ are hardware-based options/items and are card-based. These options are available as factory-installed only on new product, or product returned to Cobalt for factory installation.

Color Correction (+COLOR) – Provides full RGB color corrector (offset, gain, gamma) with extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip (per-path based)

Logo Insertion (+LOGO) – Allows uploading of user logo graphic file to card, with automated insertion controlled by GPI or other events (per-path based)

Trouble Slate Import (+T-SLATE) – Allows uploading of up to three different user trouble slate graphic file to card, with automated insertion controlled by GPI or other events (per-path based)

Clean & Quiet Switching (+CQS) – Provides automatic audio ramp-down and up during input switching events for noise-free audio between input switches

BBC LUTS (+3D-LUT-BBC) – Licensed product developed by the BBC, provides BBC 3D LUTS for SDR-to-HDR and HDR-to-SDR

IP ANC Insert/Extract Option (+ANC) (Per-path based; 4-path internal ANC bridge is standard)

Serial-To-Embedded Audio LTC In (+LTC)

Software-Defined Convert Card to 4K Quad-Link Input SDM/2SI 4K UDX/Frame Sync (+2K-TO-4K-9905) – Software-defined option license that converts card to Quad-Link Input SDM/2SI 4K UDX/Frame Sync model

-UDX-SFP-MSA Adds daughter card supporting externally-accessible dual MSA SFP cage.

Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. -UDX-SFP-MSA option can only be used with rear modules (such as RM20-9905-C-HDBNC) that support SFP plug-in modules. When ordering, please see Ordering Information for further details.

-SFP-EOOE-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors)

-SFP-EO-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector)

-SFP-OE-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector)

-SFP-EOOE-MSA Single-Channel Video Optical Transceiver (LC female connectors)

-SFP-EO-MSA Single-Channel Video Optical Transmitter (LC female connector)

-SFP-OE-MSA Single-Channel Video Optical Receiver (LC female connector)

-SFP-IP-SWD-MSA Software-Defined MSA SFP; 2110 or 2022-6 Encapsulator/De-Encapsulator (See Ordering Info for full descriptions and details.)

-UDX-SFP Adds daughter card supporting externally-accessible dual SFP cage; orderable as new option. (See Ordering Information for SFP types available and detailed descriptions.) Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. -UDX-SFP option can only be used with rear modules (such as RM20-9905-C-HDBNC) that support SFP plug-in modules. When ordering, please see Ordering Information for further details.

-SFP-EOOE-12G 12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors)

-SFP-EO-12G 12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector)

-SFP-2EO-12G 12G/6G/3G/HD/SD-SDI UHD Dual Transmitter (LC female connector)

-SFP-OE-12G 12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector)

-SFP-2OE-12G 12G/6G/3G/HD/SD-SDI UHD Dual Receiver (LC female connector)

-SFP-EOOE Single-Channel Video Optical Transceiver (LC female connectors)

-SFP-EO Single-Channel Video Optical Transmitter (LC female connector)

-SFP-2EO Dual-Channel Video Optical Transmitter (LC female connector)

-SFP-OE Single-Channel Video Optical Receiver (LC female connector)

-SFP-2OE Dual-Channel Video Optical Receiver (LC female connector)

-SFP-IP-SWD Software-Defined EmSFP; 2110 or 2022-6 Encapsulator/De-Encapsulator (See Ordering Info for full descriptions and details.)

Note: All specifications are preliminary and subject to change.

3G/HD/SD-SDI Input/Outputs (4) 75Ω inputs (max); (4) inputs can be simultaneously routed to the four UDX/FS paths. (2×4) 75Ω outputs (max) SDI Formats Supported: SMPTE 424M, 292M, SMPTE 259M Return Loss: > 15 dB up to 1.485 GHz > 10 dB up to 3 GHz Input Cable Length: 120m Belden 1694A cable at 2.97 Gbps 240m Belden 1694A cable at 1.485 Gbps 400m Belden 1694A cable at 270 Mbps Output Signal Level: 800 mV ±10% DC Offset: 0 V ± 50 mV Alignment Jitter (3G/HD/SD): < 0.3/0.2/0.2 UI

Frame Sync Audio/Video Delay Max offset: 20 frames Latency (min): 1 frame

User Audio Delay Offset from Video Bulk delay control: -33 msec to +3000 msec. Per-channel delay controls: -800 msec to +800 msec

AES Audio Inputs/Outputs (8) AES-3id 75Ω coaxial ports (max); port direction assignable as inputs or outputs in groups of 4 ports.

MADI Audio Inputs/Outputs (2) 75Ω coaxial ports (max) Note: Not all rear modules support full MADI I/O. MADI I/O is a function of Rear Module Used. See Rear Module illustrations for specific information.

HDMI Output HDMI 2.0 Output; type A standard connector

GPIO 6 GPI (max); 2 GPO (max) Note: GPIO max capacity is a function of Rear Module used. See Rear Module Options tab for specific information.

Frame Reference Input (2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”

Frame Loading (Max. recommended number of 9905 cards supported per Frame Model)

• • OG3 Frame: (5) cards
  • HPF-9000 Frame: (5) cards
  • oGx Frame: (7) cards

Note: In all cases, it is recommended to leave a 1RU gap above the frame and set frame Network Controller Card to run the frame cooling fans at full (max.) speed.

Note: Rear modules with SFP access do not come standard with any SFP functionality. SFP functionality is available only when used in conjunction with SFP option.

RM20-9905-B-HDBNC

• • (5) SDI In
  • (8) SDI Out
  • (4) AES I/O (User Selectable)
  • (1) MADI In
  • GPIO/COMM
  • (1) HDMI Out
  • (1) 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC)

RM20-9905-C-HDBNC

• • (5) SDI In
  • (4) SDI Out
  • (1) MADI In
  • GPI/COMM
  • (1) HDMI Out
  • (2) SFP cage receptacles (valid with SFP option)
  • (1) 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC)

RM20-9905-D-HDBNC

• • (5) SDI In
  • (6) SDI Out
  • (4) AES I/O (User Selectable)
  • (1) MADI In
  • GPIO/COMM
  • (1) 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC) Note: Due to the alignment of the 9905-MPx card and this rear module, the combination of the card and rear module will consume the adjacent odd frame slot in addition to the even slot occupied by the card. Note: This rear module cannot be installed in frame slots 19/20 location. The 9905-MPx card, when installation is attempted, will clash/interfere with the frame network controller card.

RM20-9905-F-HDBNC

• • (5) SDI In
  • (8) SDI Out
  • (8) AES I/O (User Selectable)
  • (1) MADI In
  • (1) MADI Out
  • (1) HDMI Out
  • (2) SFP cage receptacles (valid with SFP option)
  • GPI/COMM
  • (1) 100/1000 BaseT Ethernet Port

RM20-9905-G-HDBNC

• • (4) SDI In
  • (4) SDI Out
  • (3) AES I/O (User Selectable)
  • (2) SFP cage receptacles (valid with SFP option)
  • GPIO/COMM (All coaxial connectors HD-BNC) Note: Mates to card in odd slot.

RM20-9905-H-HDBNC

• • (4) SDI In
  • (1) Relay protected SDI Out (proc or SDI IN 5 on loss of power)
  • (6) SDI Out
  • (4) AES I/O (User Selectable)
  • (1) MADI In
  • (1) MADI Out
  • GPIO/COMM (All coaxial connectors HD-BNC) Note: Mates to card in odd slot. Note: 12G signals over relay bypass path stipulates maximum cable length not to exceed 10m for total of both input and output cable lengths.

RM20-9905-J-HDBNC

• • (4) SDI In
  • (1) Relay protected SDI Out (proc or SDI IN 5 on loss of power)
  • (6) SDI Out
  • (4) AES I/O (User Selectable)
  • (1) MADI In
  • (1) MADI Out
  • GPIO (All coaxial connectors HD-BNC) Note: Mates to card in odd slot. Note: 12G signals over relay bypass path stipulates maximum cable length not to exceed 10m for total of both input and output cable lengths.


  ORDERING INFORMATION

  9905-MPx 3G/HD/SD Quad-Path Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor

  Rear Modules: Note: Rear modules with SFP access do not come standard with any SFP functionality. Appropriate SFP option must be provisioned for rear module SFP functionality.

  RM20-9905-B-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (5) 3G/HD/SD/SD-SDI Inputs, (8) 3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, (1) MADI Input, GPIO/COMM, HDMI 2.0 Output (type A standard connector), 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)

  RM20-9905-C-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (5) 3G/HD/SD/SD-SDI Inputs, (4) 3G/HD/SD/SD-SDI Processed Outputs, (1) MADI Input, GPI/COMM, HDMI 2.0 Output (type A standard connector), (2) SFP cage receptacles (when used in conjunction with SFP option), 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)

  RM20-9905-D-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (5) 3G/HD/SD/SD-SDI Inputs, (6) 3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, (1) MADI Input, GPIO/COMM, 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)

  RM20-9905-F-HDBNC 20-Slot Frame Rear I/O Module (Double-Width) (5) 3G/HD/SD/SD-SDI Inputs, (8) 3G/HD/SD/SD-SDI Processed Outputs, (8) AES I/O, (1) MADI Input, (1) MADI Output, GPI/COMM, HDMI 2.0 Output (type A standard connector), (2) SFP cage receptacles (when used in conjunction with SFP option), 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)

  RM20-9905-G-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (4) 3G/HD/SD/SD-SDI Inputs, (4) 3G/HD/SD/SD-SDI Processed Outputs, (3) AES I/O, (2) SFP cage receptacles (when used in conjunction with SFP option), GPIO/COMM (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)

  RM20-9905-H-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (4) 3G/HD/SD/SD-SDI Inputs, (6) 3G/HD/SD/SD-SDI Processed Outputs (one 3G/HD/SDI Output with relay bypass failover), (4) AES I/O, (1) MADI Input, (1) MADI Output, GPIO/COMM (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)

  RM20-9905-J-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (4) 3G/HD/SD/SD-SDI Inputs, (6) 3G/HD/SD/SD-SDI Processed Outputs (one 3G/HD/SDI Output with relay bypass failover), (4) AES I/O, (1) MADI Input, (1) MADI Output, GPIO (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)



  Options:

  +3D-LUT-BBC BBC 3D LUTS Option +COLOR Color Correction Option +LOGO Logo Insertion Option +ANC IP ANC Insert/Extract Option +T-SLATE Trouble Slate Insertion Option +LTC RS-485 Serial-To-Embedded Audio LTC In Option +CQS Clean & Quiet Switching Option +2K-TO-4K-9905 Software-Defined Convert Card to 4K Quad-Link SDM/2SI 4K UDX/Frame Sync Option

  -UDX-SFP-MSA Adds daughter card supporting externally-accessible dual MSA SFP cage; orderable as new option. Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. The SFP modules listed below are available for the 9905-MPx card when also fitted with SFP option -UDX-SFP-MSA.

  • • -UDX-SFP-MSA-2S is required where 2-slot (“Standard-Width”) rear module (such as RM20-9905-G-HDBNC) is to be fitted with SFP option.
    • -UDX-SFP-MSA-4S is required where 4-slot (“Double-Width”) rear module (such as RM20-9905-C-HDBNC or RM20-9905-F-HDBNC) is to be fitted with SFP option. Rear modules RM20-9905-C-HDBNC, RM20-9905-F-HDBNC, or RM20-9905-G-HDBNC and option -UDX-SFP-MSA-2S or -UDX-SFP-MSA-4S are purchased and available separately.

  -SFP-EOOE-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors) -SFP-EO-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector) -SFP-OE-MSA-12G 12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector) -SFP-EOOE-MSA Single-Channel Video Optical Transceiver (LC female connectors) -SFP-EO-MSA Single-Channel Video Optical Transmitter (LC female connector) -SFP-OE-MSA Single-Channel Video Optical Receiver (LC female connector) -SFP-IP-SWD-MSA Software-Defined MSA SFP; 2011/2022-6 Encap/De-Encap Host. 10GigE Multi-Mode Optical Interface with Female LC Duplex Connectors. The following I/O purposing software options are available for cards using SFP type -SPF-IP-SWD-MSA (Up to 3 software licenses can be added to the -SFP-IP-SWD-MSA, but only 1 license can be active at a time):

  +ADD-SFP-IP-TO-SDI-2022-6 SFP Software License; Single-Channel De-Encapsulator IP-2022-6-to-SDI +ADD-SFP-IP-TO-SDI-2110 SFP Software License; Single-Channel De-Encapsulator IP-2110-to-SDI +ADD-SFP-SDI-TO-IP-2022-6 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2022-6 +ADD-SFP-SDI-TO-IP-2110 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2110

  • • -UDX-SFP Adds daughter card supporting externally-accessible dual SFP cage; orderable as new option. Note: To support SFP option(s), this option is required in addition to desired specific SFP options below. The SFP modules listed below are available for the 9905-MPx card when also fitted with SFP option -UDX-SFP.
      • -UDX-SFP-2S is required where 2-slot (“Standard-Width”) rear module (such as RM20-9905-G-HDBNC) is to be fitted with SFP option.
      • -UDX-SFP-4S is required where 4-slot (“Double-Width”) rear module (such as RM20-9905-C-HDBNC or RM20-9905-F-HDBNC) is to be fitted with SFP option. Rear modules RM20-9905-C-HDBNC, RM20-9905-F-HDBNC, or RM20-9905-G-HDBNC and option -UDX-SFP-2S or -UDX-SFP-4S are purchased and available separately.

  -SFP-EOOE-12G 12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors) -SFP-EO-12G 12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector) -SFP-OE-12G 12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector) -SFP-2EO-12G 12G/6G/3G/HD/SD-SDI UHD Dual Transmitter (LC female connector) -SFP-2OE-12G 12G/6G/3G/HD/SD-SDI UHD Dual Receiver (LC female connector) -SFP-EOOE Single-Channel Video Optical Transceiver (LC female connectors) -SFP-EO Single-Channel Video Optical Transmitter (LC female connector) -SFP-OE Single-Channel Video Optical Receiver (LC female connector) -SFP-2EO Dual-Channel Video Optical Transmitter (LC female connector) -SFP-2OE Dual-Channel Video Optical Receiver (LC female connector) -SFP-IP-SWD Software-Defined EmSFP; 2011/2022-6 Encap/De-Encap Host. 10GigE Multi-Mode Optical Interface with Female LC Duplex Connectors. The following I/O purposing software options are available for cards using SFP type -SPF-IP-SWD (Up to 3 software licenses can be added to the -SFP-IP-SWD, but only 1 license can be active at a time):

  +ADD-SFP-2SDI-TO-IP-2022-6 SFP Software License; Dual-Channel Encapsulator 2SDI-to-IP-2022-6 +ADD-SFP-2SDI-TO-IP-2110 SFP Software License; Dual-Channel Encapsulator 2SDI-to-IP-2110 +ADD-SFP-IP-TO-2SDI-2022-6 SFP Software License; Dual-Channel De-Encapsulator IP-2022-6-to-2SDI +ADD-SFP-IP-TO-2SDI-2110 SFP Software License; Dual-Channel De-Encapsulator IP-2110-to-2SDI +ADD-SFP-IP-TO-SDI-2022-6 SFP Software License; Single-Channel De-Encapsulator IP-2022-6-to-SDI +ADD-SFP-IP-TO-SDI-2110 SFP Software License; Single-Channel De-Encapsulator IP-2110-to-SDI +ADD-SFP-SDI-TO-IP-2022-6 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2022-6 +ADD-SFP-SDI-TO-IP-2110 SFP Software License; Single-Channel Encapsulator SDI-to-IP-2110



  ADD Native SMPTE ST 2110 Support

  The COBALT INDIGO 2110-DC-01 is a factory add-on option to Cobalt 9904-UDX-4K and 9905-MPx models. This option adds native SMPTE ST 2110 support for these cards, with multiple 25G Ethernet interfaces.

  The INDIGO 2110-DC-01 circumvents the cumbersome, error-prone, and expensive prior solutions of multiple devices in the data path. Adding native ST 2110 interfaces to the audio/video processing elements, Cobalt is providing a cost-effective, easily manageable, integrated solution to this problem. Multiple boxes or processing elements are no longer needed in the data path, going back and forth between IP and SDI. By natively doing all the processing directly over IP, unnecessary complexity and cost is avoided.

  With this option, all the advanced processing in these cards is now available with IP inputs and outputs, without the need for an external gateway. INDIGO 2110-DC-01 includes support for ST 2022-7 seamless redundancy switching, as well as IS-04/IS-05 NMOS for automatic discovery and configuration. Mated with the host card, this creates a powerful and processing-dense product that is capable of natively processing HD, 3G and 4K IP streams with no quality compromises. No other solution currently in the market can achieve the density provided by the combination of functionality offered by the INDIGO 2110-DC-01 and the 9904-UDX-4K/9905-MPx combination.
