9904-UDX-4K

The award-winning Cobalt® 9904-UDX-4K 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor is Cobalt’s next generation of advanced scaler/frame synchronizers for the openGear® platform.

The 9904-UDX-4K upconverts 12G/6G/3G/HD/SD to either UHD1 3840×2160 Square DIvision Multiplex (SDM) or Two-Sample Interleave (2SI) quad 3G-SDI based formats, or can output ST 2082 12G-SDI for single-wire 4K transport. With both 12G-SDI and quad 3G-SDI inputs, the 9904-UDX-4K can downconvert 12G and quad UHD. The 9904-UDX-4K provides an HDMI 2.0 output for economical 4K video monitoring. The 9904-UDX-4K offers numerous options, including SDR-to-HDR conversion and color correction.

The 9904-UDX-4K-IP model offers the same functionality as the 9904-UDX-4K SDI-based model, but also provides dual 10GigE ports providing support for the emerging uncompressed video/audio/data over IP standards.

The 9904-UDX-4K-DSP model provides the same functionality as the 9904-UDX-4K model, and additionally also offers a DSP-based platform that supports multiple audio DSP options, including Dolby® Real-Time Loudness Leveling automatic loudness processing, Dolby® E/D/D+ encode/decode, and Linear Acoustic® UPMAX™ automatic upmixing. Embedded audio and metadata are properly delayed and re-embedded to match any video processing delay, with full adjustment available for audio/video offset.

The high-density openGear® design allows for up to five 9904-UDX-4K to be installed in one 2RU openGear® frame. Card control/monitoring is available via DashBoard user interface, integrated HTML5 web interface, SNMP, or Cobalt’s RESTful-based Reflex protocol.

Alternate Models: 9904-UDX-4K-IP  12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor with Dual 10GigE IP Ports 9904-UDX-4K-DSP  12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync with DSP Advanced Audio Processing

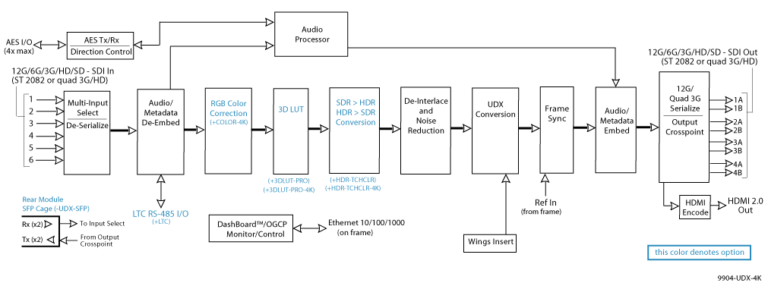

FEATURES

• High-density openGear comprehensive UHD UDX solution
• Full up/down conversion between HD/3G, ST 2082 12G-SDI single-wire, and SDM/2SI quad 3G-SDI based formats, with ST 2082 12G-SDI single-wire and quad 3G UHD available at both input and output
• Supports Square Division Multiplex (SDM) and Two-Sample Interleave (2SI) quad UHD formats
• 12G-SDI and quad 3G frame sync and user delay
• Supports SNMP and Cobalt’s Reflex (JSON) Protocols
• Full embedded audio processing with user delay offset and AES I/O
• Noise Reduction and Detail Enhancement provide image quality optimization
• Remote control/monitoring via Dashboard™ software, OGCP-9000 remote control panels, integrated HTML5 web interface, SNMP, or Cobalt’s RESTful-based Reflex protocol
• Five year warranty

SPECIFICATIONS

Note: All specifications are preliminary and subject to change.

12G/6G/3G/HD/SD-SDI Input/Outputs  (6) 75Ω inputs (max) (8) 75Ω outputs (max) SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant. Return Loss: > 15 dB up to 1.485 GHz > 10 dB up to 3 GHz > 7 dB up to 6 GHz > 5 dB up to 12 GHz Input Cable Length: 45m Belden 1694A cable at 11.88 Gbps 120m Belden 1694A cable at 2.97 Gbps 240m Belden 1694A cable at 1.485 Gbps 400m Belden 1694A cable at 270 Mbps Output Signal Level: 800 mV ±10% DC Offset: 0 V ± 50 mV Rise and Fall Time @ 11.88 Gbps: < 45 ps Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI

Frame Sync Audio/VIdeo Delay Max offset: 20 frames Latency (min): 1 frame

User Audio Delay Offset from Video Bulk delay control: -33 msec to +3000 msec. Per-channel delay controls: -800 msec to +800 msec

HDMI Output HDMI 2.0 Output; type A standard connector

Frame Reference Input (2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”

Frame Loading (Max. recommended number of 9904 cards supported (by Frame Model)

• • OG3 Frame: (5) cards
  • HPF-9000 Frame: (5) cards
  • oGx Frame: (7) cards Note: In all cases, it is recommended to leave a 1RU gap above the frame and set frame Network Controller Card to run the frame cooling fans at full (max.) speed.

REAR MODULES

Note:


• • MADI I/O is available on rev C (or later) hardware with firmware supporting MADI I/O. When enabled ‘MADI In and MADI Out acquire SDI In 6 and SDI Out 5 (respectively) on rear modules that support ‘these I/O. Rear modules that support MADI I/O (“MADI Compatible”) show the MADI port locations ‘that are SDI IN 6 and/or SDI OUT 5 alternatives (as shown in rear module illustrations).
  • Rear modules with SFP access do not come standard with any SFP functionality. Appropriate SFP option must be provisioned for rear module SFP functionality.

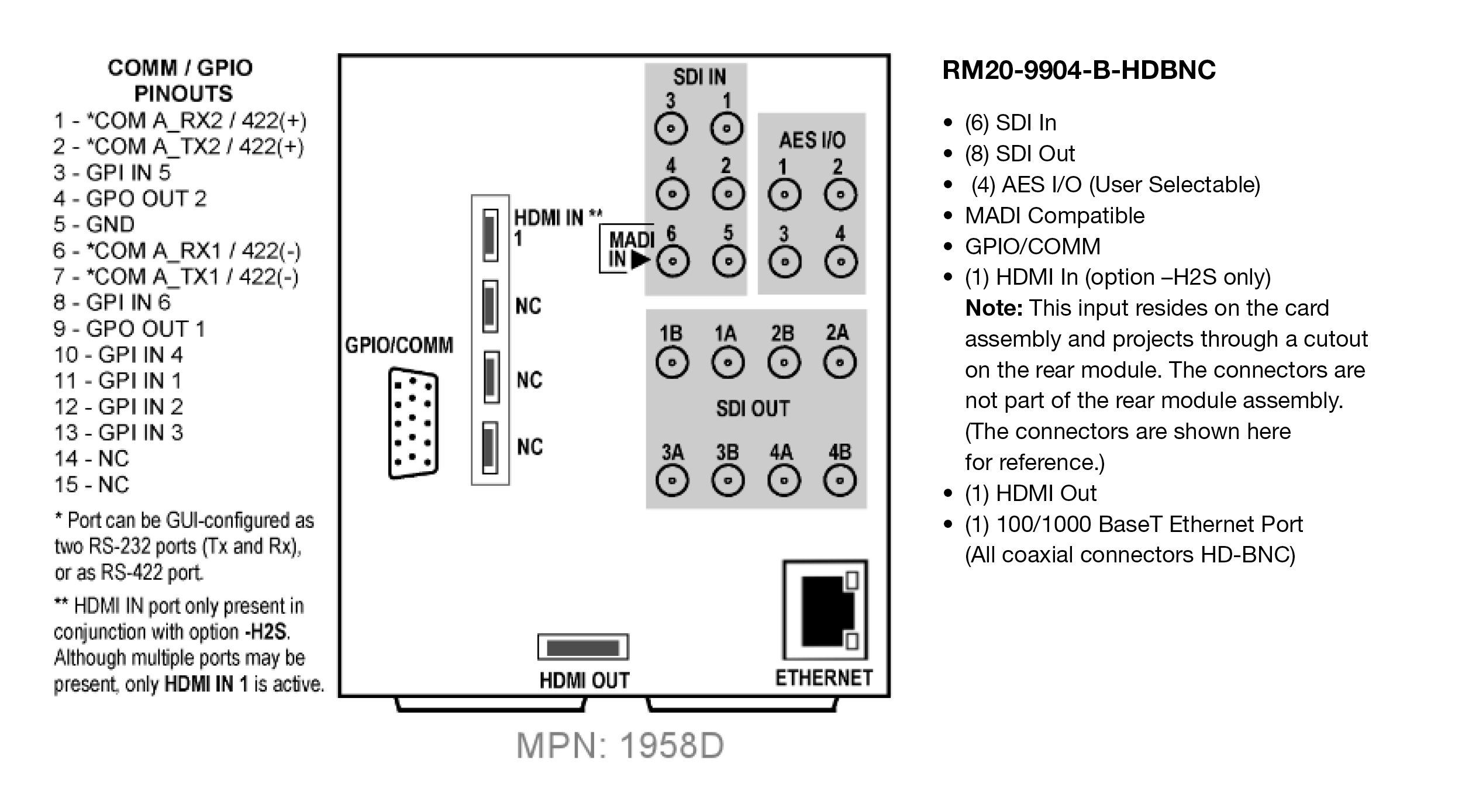

RM20-9904-B-HDBNC

• • (6) SDI In
  • (8) SDI Out
  • (4) AES I/O (User Selectable)
  • MADI Compatible
  • GPIO/COMM
  • (1) HDMI In (option –H2S only) Note: This input resides on the card assembly and projects through a cutout on the rear module. The connectors are not part of the rear module assembly. (The connectors are shown here for reference.)
  • (1) HDMI Out
  • (1) 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC)

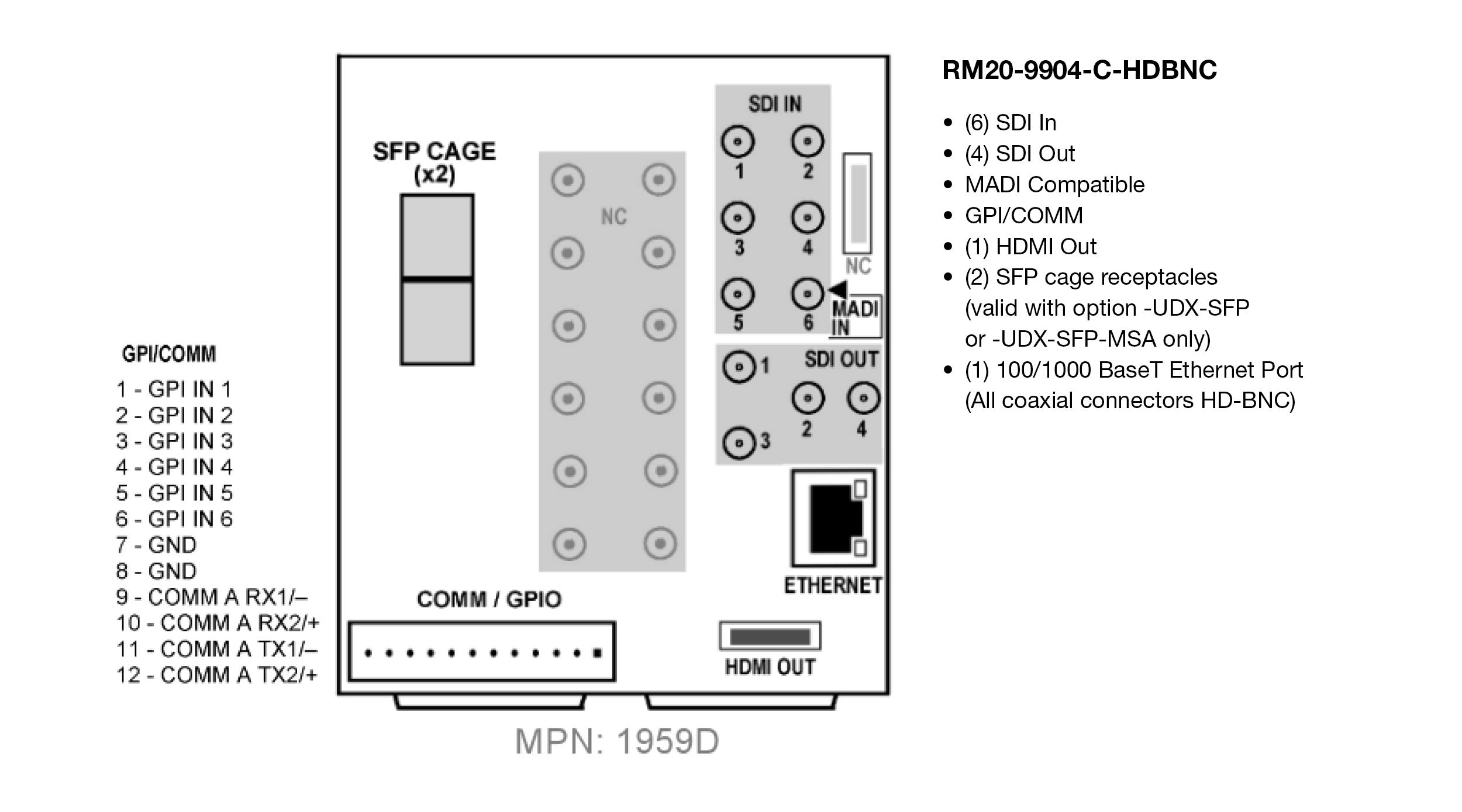

RM20-9904-C-HDBNC

• • (6) SDI In
  • (4) SDI Out
  • MADI Compatible
  • GPI/COMM
  • (1) HDMI Out
  • (2) SFP cage receptacles (valid with option -UDX-SFP or -UDX-SFP-MSA only)
  • (1) 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC)

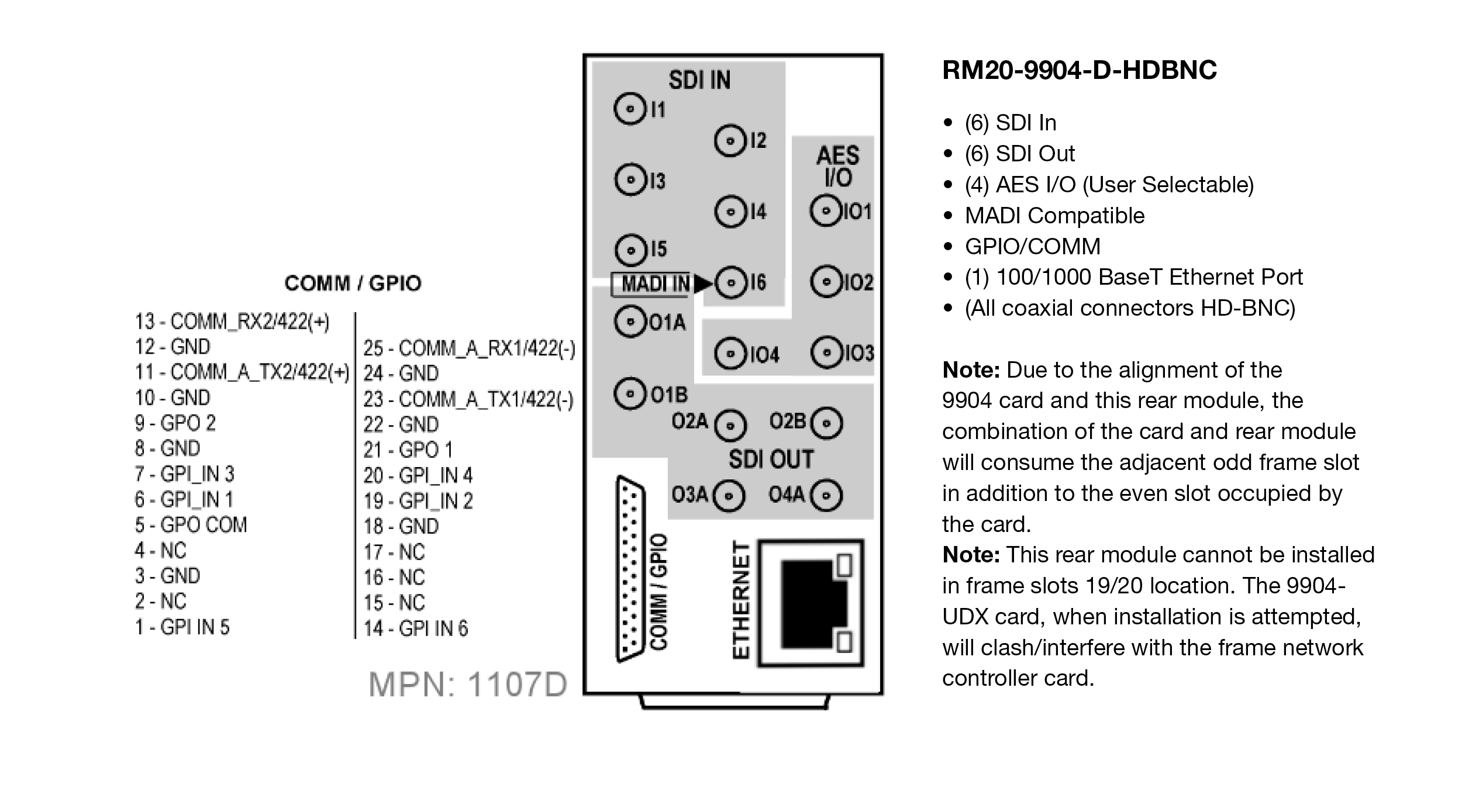

RM20-9904-D-HDBNC

• • (6) SDI In
  • (6) SDI Out
  • (4) AES I/O (User Selectable)
  • MADI Compatible
  • GPIO/COMM
  • (1) 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC)

Note: Due to the alignment of the 9904 card and this rear module, the combination of the card and rear module will consume the adjacent odd frame slot in addition to the even slot occupied by the card. Note: This rear module cannot be installed in frame slots 19/20 location. The 9904-UDX card, when installation is attempted, will clash/interfere with the frame network controller card.

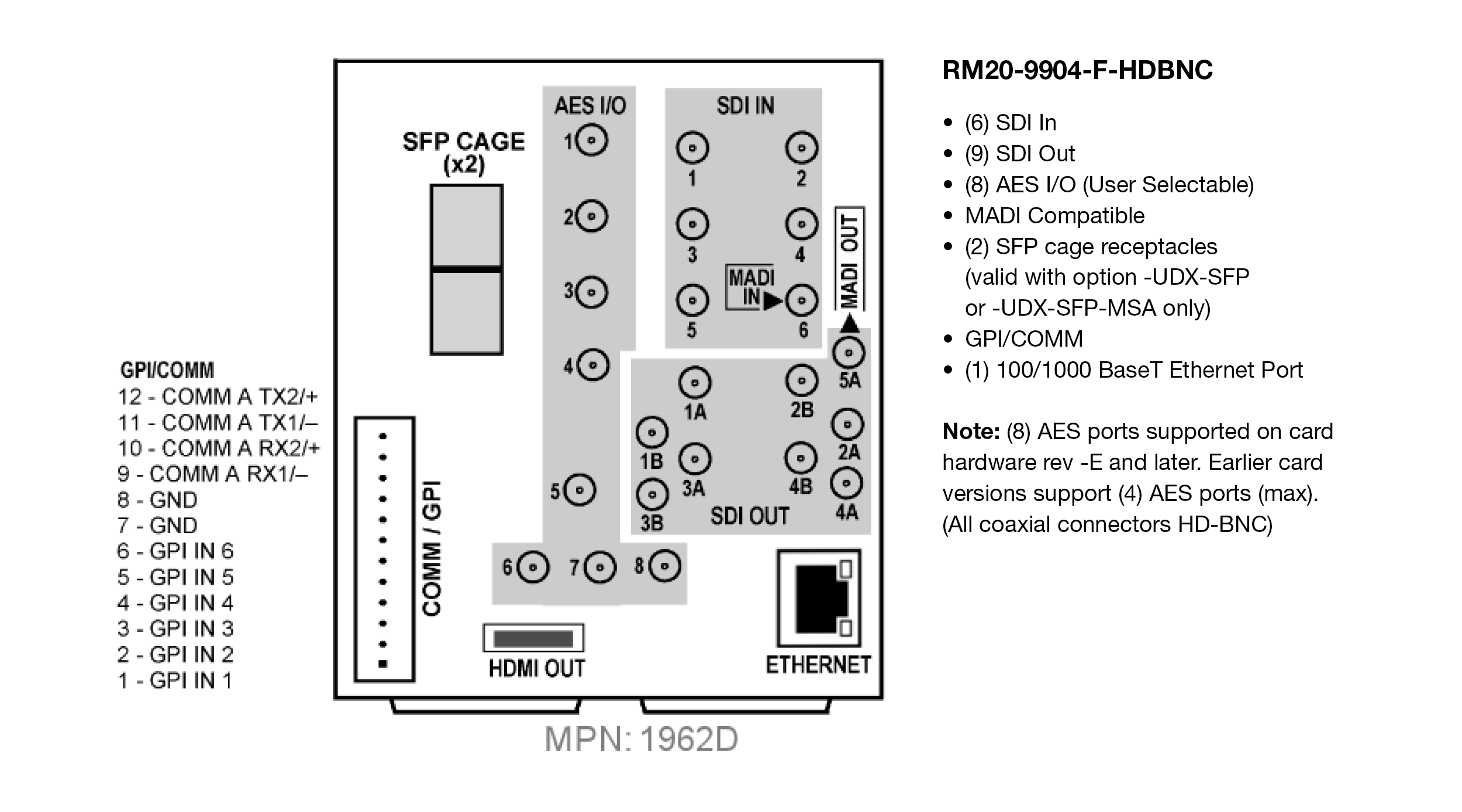

RM20-9904-F-HDBNC

• • (6) SDI In
  • (9) SDI Out
  • (8) AES I/O (User Selectable)
  • MADI Compatible
  • (2) SFP cage receptacles (valid with option -UDX-SFP or -UDX-SFP-MSA only)
  • GPI/COMM
  • (1) 100/1000 BaseT Ethernet Port Note: (8) AES ports supported on card hardware rev -E and later. Earlier card versions support (4) AES ports (max). (All coaxial connectors HD-BNC)

RM20-9904-G-HDBNC

• • (4) SDI In
  • (4) SDI Out
  • (3) AES I/O (User Selectable)
  • SFP cage receptacles (valid with option -UDX-SFP or-UDX-SFP-MSA only)
  • GPIO/COMM (All coaxial connectors HD-BNC) Note: Mates to card in odd slot.

RM20-9904-H-HDBNC

• • (5) SDI In
  • (1) Relay protected SDI Out (processed SDI OUT 1A or SDI IN 5 on loss of power)
  • (7) SDI Out
  • MADI Compatible
  • (4) AES I/O (User Selectable)
  • GPIO/COMM (All coaxial connectors HD-BNC) Note: Mates to card in odd slot. Note: 12G signals over relay bypass path stipulates maximum cable length not to exceed 10m for total of both input and output cable lengths.

RM20-9904-J-HDBNC

• • (5) SDI In
  • (1) Relay protected SDI Out (processed SDI OUT 1A or SDI IN 5 on loss of power)
  • (7) SDI Out
  • MADI Compatible
  • (4) AES I/O (User Selectable)
  • GPIO (All coaxial connectors HD-BNC) Note: Mates to card in odd slot. Note: 12G signals over relay bypass path stipulates maximum cable length not to exceed 10m for total of both input and output cable lengths.

ORDERING INFORMATION

9904-UDX-4K  12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor

Rear Modules:

Note: All Rear I/O Modules are preliminary designs/layouts and subject to change.

RM20-9904-B-HDBNC  20-Slot Frame Rear I/O Module (Double-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (8) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, GPIO/COMM (HD-15 connector), HDMI 2.0 Output (type A standard connector), 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)

RM20-9904-C-HDBNC  20-Slot Frame Rear I/O Module (Double-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (4) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, GPIO/COMM, HDMI 2.0 Output (type A standard connector), (2) SFP cage receptacles (when used in conjunction with option –UDX-SFP), 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)

RM20-9904-D-HDBNC  20-Slot Frame Rear I/O Module (Standard-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (6) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, GPIO/COMM, 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)

RM20-9904-E-HDBNC  20-Slot Frame Rear I/O Module (Double-Width) (6) 12G/6G/3G/HD/SD/SD-SDI Inputs, (9) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (4) AES I/O, GPIO/COMM, HDMI 2.0 Output (type A standard connector), (2) SFP cage (receptacles) (when used in conjunction with option –UDX-SFP), 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC.)

OPTIONS

+HDR-TCHCLR-4K  4K SDR/HDR Conversion Option

+HDR-TCHCLR  SDR/HDR Conversion Option

+3DLUT-PRO-4K  3D LUT 4K Option (compatible with up-mapping to HDR and processing for down-conversions to HD SDR color space)

+3DLUT-PRO  3D LUT Option (compatible with processing for down-conversions to HD SDR color space)

+3D-LUT-BBC  BBC 3DLUT CUBE Option (Requires +3D-LUT-PRO or +3D-LUT-PRO-4K option to also be present to support this option)

+COLOR-4K  4K Color Correction Option

+COLOR  Color Correction Option

+LTC  Audio LTC I/O Option

-UDX-SFP  Adds daughter card supporting externally-accessible dual SFP cage; orderable as new option. Note: To support SFP option(s), this option is required in addition to desired specific SFP options below.

The following SFP modules are available for the 9904-UDX-4K card when also fitted with SFP option -UDX-SFP and rear modules RM20-9904-C-HDBNC or RM20-9904-E-HDBNC (purchased and available separately):

-SFP-EOOE-MSA-12G  12G/6G/3G/HD/SD-SDI UHD Transceiver (LC female connectors)

-SFP-EO-MSA-12G  12G/6G/3G/HD/SD-SDI UHD Transmitter (LC female connector)

-SFP-OE-MSA-12G  12G/6G/3G/HD/SD-SDI UHD Receiver (LC female connector)

-SFP-EOOE-MSA  Single-Channel Video Optical Transceiver (LC female connectors)

-SFP-EO-MSA  Single-Channel Video Optical Transmitter (LC female connector)

-SFP-OE-MSA  Single-Channel Video Optical Receiver (LC female connector)

-SFP-IP-SWD-MSA   Software-Defined EmSFP 2011/2022-6 Encap/De-Encap Host. 10GigE Multi-Mode Optical Interface with Female LC Duplex Connectors. The following I/O purposing software options are available for cards using SFP type -SPF-IP-SWD-MSA (Up to 3 software licenses can be added to the -SFP-IP-SWD-MSA, but only 1 license can be active at a time):

+ADD-SFP-2SDI-TO-IP-2022-6   SFP Software License; Dual-Channel Encapsulator 2SDI-to-IP-2022-6

+ADD-SFP-2SDI-TO-IP-2110   SFP Software License; Dual-Channel Encapsulator 2SDI-to-IP-2110

+ADD-SFP-IP-TO-2SDI-2022-6   SFP Software License; Dual-Channel De-Encapsulator IP-2022-6-to-2SDI

+ADD-SFP-IP-TO-2SDI-2110   SFP Software License; Dual-Channel De-Encapsulator IP-2110-to-2SDI

+ADD-SFP-IP-TO-SDI-2022-6   SFP Software License; Single-Channel De-Encapsulator IP-2022-6-to-SDI

+ADD-SFP-IP-TO-SDI-2110   SFP Software License; Single-Channel De-Encapsulator IP-2110-to-SDI

+ADD-SFP-SDI-TO-IP-2022-6   SFP Software License; Single-Channel Encapsulator SDI-to-IP-2022-6

+ADD-SFP-SDI-TO-IP-2110   SFP Software License; Single-Channel Encapsulator SDI-to-IP-2110



ADD Native SMPTE ST 2110 Support

The COBALT INDIGO 2110-DC-01 is a factory add-on option to Cobalt 9904-UDX-4K and 9905-MPx models. This option adds native SMPTE ST 2110 support for these cards, with multiple 25G Ethernet interfaces.

The INDIGO 2110-DC-01 circumvents the cumbersome, error-prone, and expensive prior solutions of multiple devices in the data path. Adding native ST 2110 interfaces to the audio/video processing elements, Cobalt is providing a cost-effective, easily manageable, integrated solution to this problem. Multiple boxes or processing elements are no longer needed in the data path, going back and forth between IP and SDI. By natively doing all the processing directly over IP, unnecessary complexity and cost is avoided.

With this option, all the advanced processing in these cards is now available with IP inputs and outputs, without the need for an external gateway. INDIGO 2110-DC-01 includes support for ST 2022-7 seamless redundancy switching, as well as IS-04/IS-05 NMOS for automatic discovery and configuration. Mated with the host card, this creates a powerful and processing-dense product that is capable of natively processing HD, 3G and 4K IP streams with no quality compromises. No other solution currently in the market can achieve the density provided by the combination of functionality offered by the INDIGO 2110-DC-01 and the 9904-UDX-4K/9905-MPx combination.
