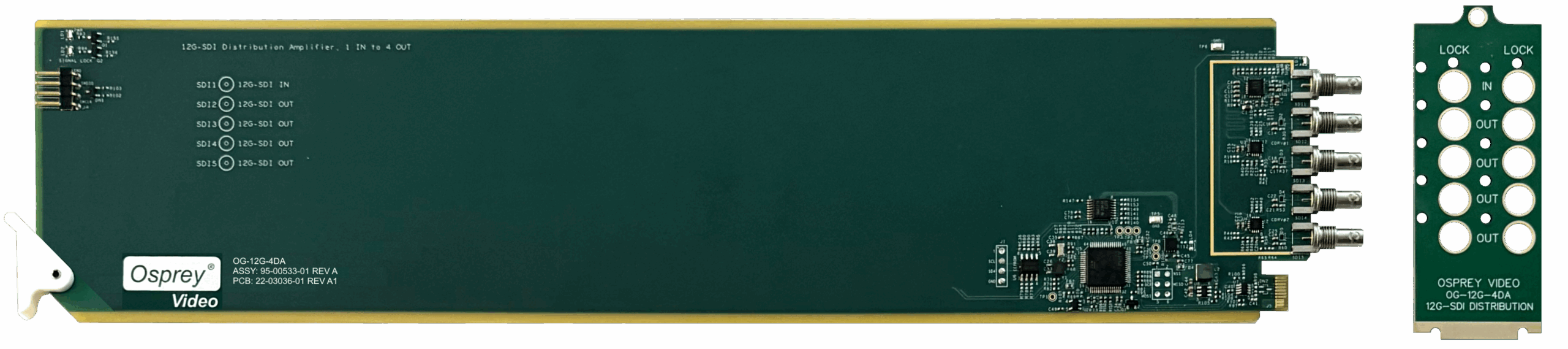

1×4 12G-SDI Distribution Amplifier

Product by: Osprey Video
SKU: 95-00533 Model: OG-12G-4DA Video Input: 1 x 12G-SDI (HD-BNC) Video Outputs: 4 x 12G-SDI (HD-BNC) Non-Inverting Standards: SMPTE-259/344/424/2081/2082 and DVB-ASI Cable Equalization (Belden 1694A) 12Gbps 75m 6Gbps 100m 3Gbps 220m 1.5Gbps 265m 270Mbps 530m Reclocking Integrated reclocker with loop filter Visual Indicators Front LED’s for Power and Signal Lock Status Rear LED for Signal Lock Status Power: 2W max Size: openGear Standard Single Slot (one rear module can accommodate 2 cards) Environment: Operating Temperature: 0 to 40 C (32 to 104 F) Storage Temperature -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: < 3000m (<10,000ft) User Interface openGear Dashboard control – Windows, Linux, macOS Signal Lock Status Card State Frame Connection State Manufacturer and Product Information openGear Compatibility OGx and OG3 up to 20 cards per frame DFR8321 up to 10 cards per frame In the box: openGear Card Rear Module Mounting Hardware
Send us a note and we’ll get back to you as soon as possible!

openGear® is the industry standard platform of choice for modular signal processing. As the world’s first modular infrastructure platform open to other manufacturers, openGear provides solutions derived from hundreds of individual cards from dozens of companies. This cooperative effort gives users best of breed product and budget options, all while ensuring common control and monitoring within the DashBoard ecosystem.
