SAPPHIRE 9926-2HtoS

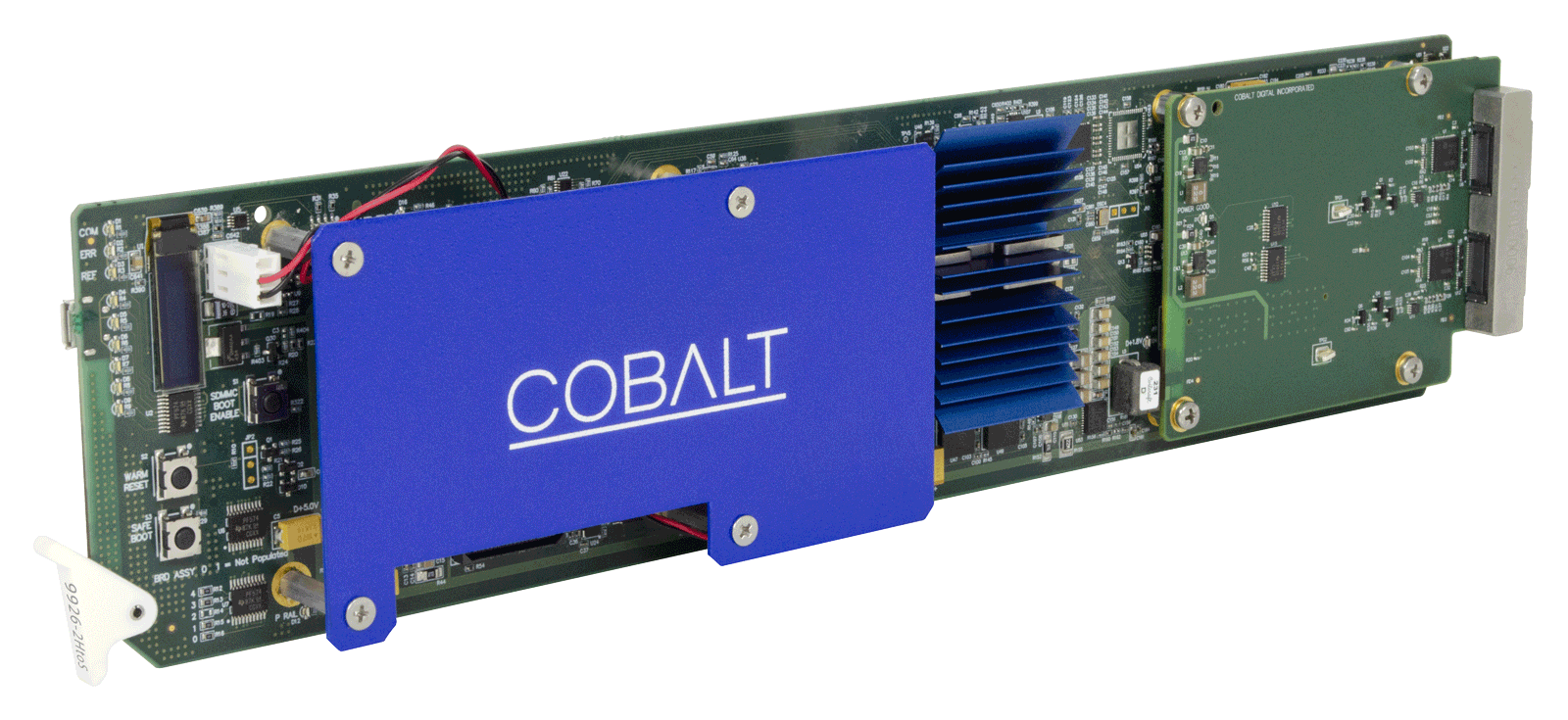

The COBALT SAPPHIRE 9926-2HtoS 12G/3G/HD/SD Dual-Channel openGear® HDMI-To-SDI Converter with Per-Channel Frame Sync provides two independent paths of true 12G/3G and HD conversions from HDMI to SMPTE 2082, 424M, 292M, or 259M. Each path is equipped with frame sync as well as full input and output audio crosspoints and optional per-path color correction and Scalers. Input and output HDMI and SDI crosspoints allow program sourcing and distribution across either of the two HDMI inputs and SDI outputs.

In existing openGear® installations, the dual-channel capacity of SAPPHIRE 9926-2HtoS can save space and lend to installation integrity over using throwdown devices. Preset save/load allows saving custom card settings while allowing instant revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.

FEATURES

• Supports all popular formats: 480i, 576i, 720p, 1080i, 1080p, 2160p

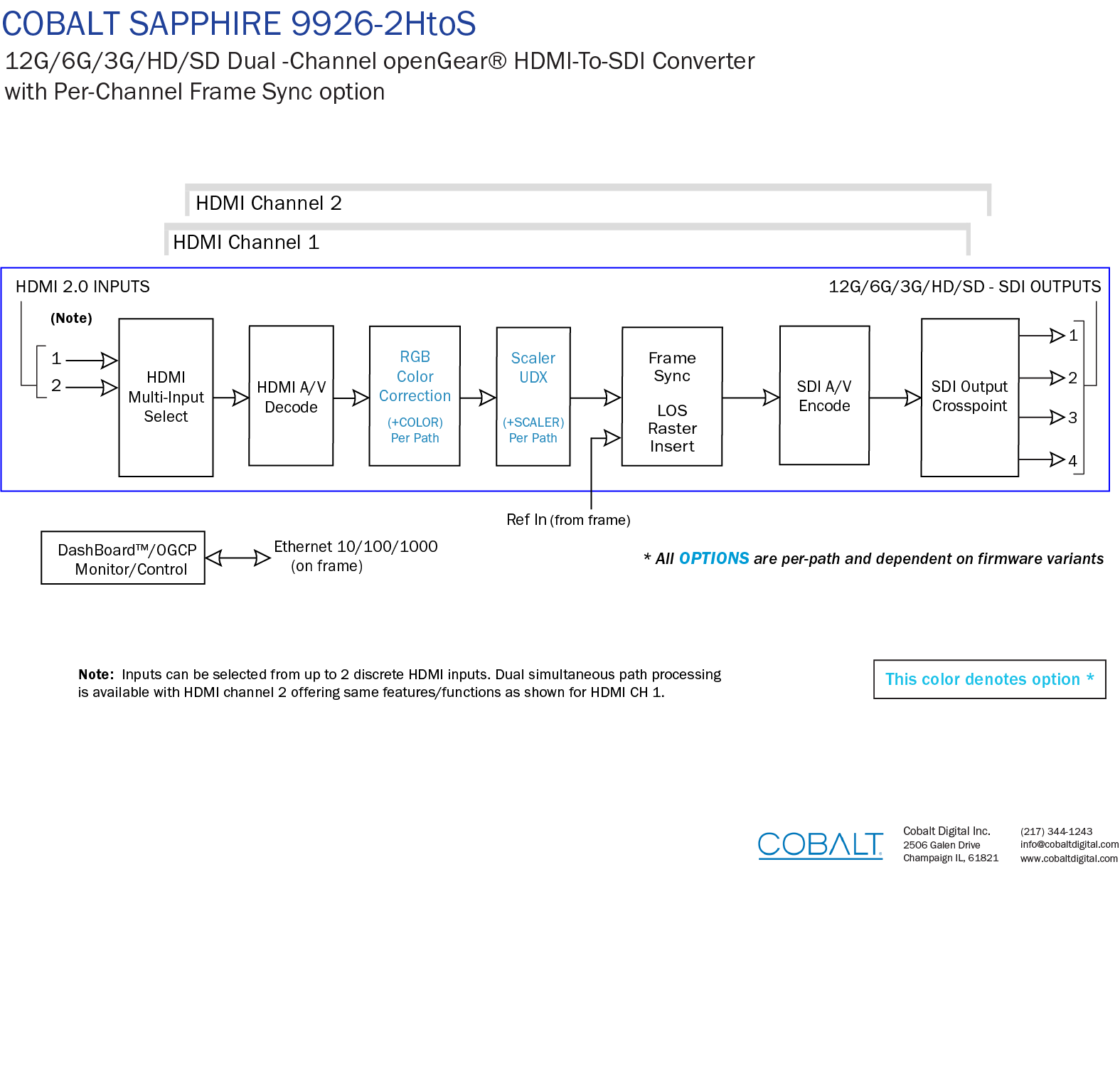

• Two independent HDMI-to-SDI processing paths on a single openGear® cards neatly integrates high capacity in openGear® environments
• Each path equipped with frame sync with configurable manual or LOS-detect insertion of frozen frame or selectable-color flat-field. Optional per-path color correction.
• Full input and output audio crosspoints, including independent flex mix, stereo downmixers, and audio delay functions
• Remote control/monitoring via DashBoard™ software or OGCP-9000 Remote Control Panel
• Hot-swappable
• Make 9926-2HtoS into a standalone unit by using 9926-2HtoS with our BBG-1300-FR 1RU Enclosure for openGear® Cards standalone enclosure
• Five-year warranty

OPTIONS

Note:

• Options denoted as “+” are software-based options which are available on new product when ordered or can be customer field-installed as a software upload upgrade. Unless otherwise noted, software options are per-card based. Options which are per-path based are identified as such.
• Options or ordering line items denoted as “-“ are hardware-based options/items and are card-based. These options are available as factory-installed only on new product, or product returned to Cobalt for factory installation.

Color Correction Option (+COLOR) – Provides full RGB color corrector (offset, gain, gamma) with extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip (per-path based)

Up/Down/Cross Conversion Option (+SCALER) – Software option (per-path). Supports 59.94 <-> 60 conversions. The +SCALER option supports scaling and conversion between formats up to and including 1080p.

REAR MODULES

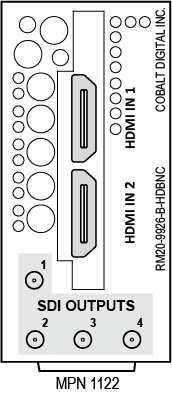

RM20-9926-B-HDBNC

• (2) HDMI Inputs
• (4) SDI Outputs – HDBNC

Note: Due to the alignment of the 9926-2HtoS card and this rear module, the combination of the card and rear module will consume the adjacent even frame slot in addition to the odd slot occupied by the card. Note: Mates to card in odd slot.

SPECIFICATIONS

Note: All specifications are preliminary and subject to change.

Power 49 Watts

Standards Supported SMPTE 259M, 292M, 424M, 2082.

HDMI Inputs (2) HDMI 2.0

12G/3G/HD/SD-SDI Outputs (4) 75Ω Outputs (max) Output Signal Level: 800 mV ±10% DC Offset: 0 V ± 50 mV Alignment Jitter (3G/HD/SD): < 0.3/0.2/0.2 UI

Frame Sync Audio/Video Delay Max offset: 20 frames Latency (min): 1 frame

User Audio Delay Offset from Video Bulk delay control: -33 msec to +3000 msec. Per-channel delay controls: -800 msec to +800 msec

Frame Reference Input (2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”

Note: Per-path frame reference offers independent per-path controls (such as video delay offset). However, all paths must be locked to the same selected reference selection (e.g., frame REF 2 used for each path).

ORDERING INFORMATION

SAPPHIRE 9926-2HtoS 12/3G/HD/SD Dual-Channel openGear® HDMI-To-SDI Converter with Per-Channel Frame Sync

Rear Modules: RM20-9926-B-HDBNC 20-Slot Frame Rear I/O Module (Standard-Width) (2) HDMI 2.0 Inputs, (4) 12G/3G/HD/SD/SD-SDI Processed Outputs (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)

Options:

+COLOR – Color Correction Option

+SCALER – Up/Down/Cross Conversion Software option (per-path). Supports 59.94 <-> 60 conversions. The +SCALER option supports scaling and conversion between formats up to and including 1080p.
