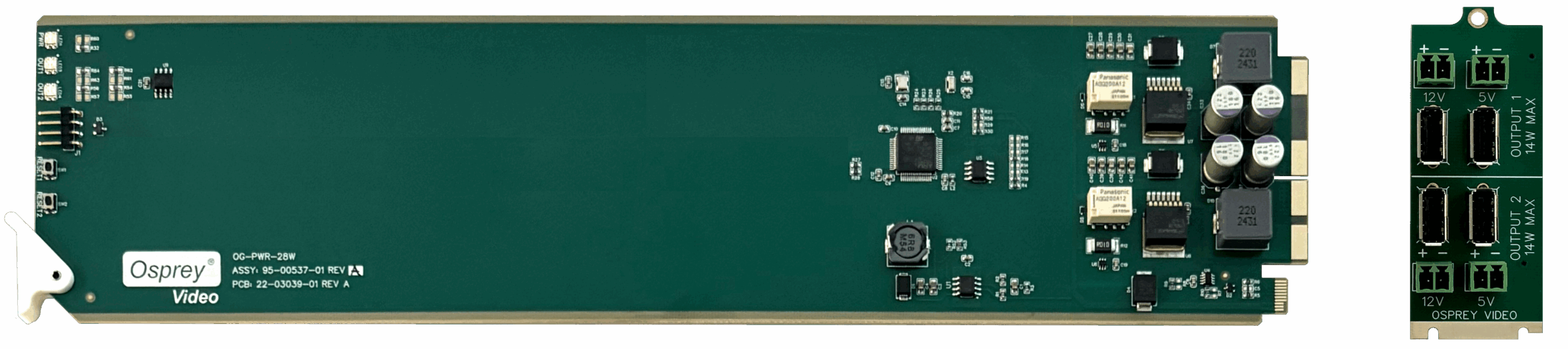

Osprey OG-PWR-28W

OG-PWR-28W eliminates wall wart power supplies for frame external accessories like mini converters, monitors,
switchers, etc. For added reliability, it supplies redundant power when the OGx or OG3 frame is equipped with
a second power supply. The output status can be monitored for overcurrent with the onboard LED’s or through
the Dashboard status page.

SKU: 95-00537
Model: OG-PWR-28W

Power Output:
Output 1: 8W (1.6A) max shared between 5V and USB Outputs or 14.4W (1.2A) max on 12V Output
Output 2: 8W (1.6A) max shared between 5V and USB Outputs or 14.4W (1.2A) max on 12V Output

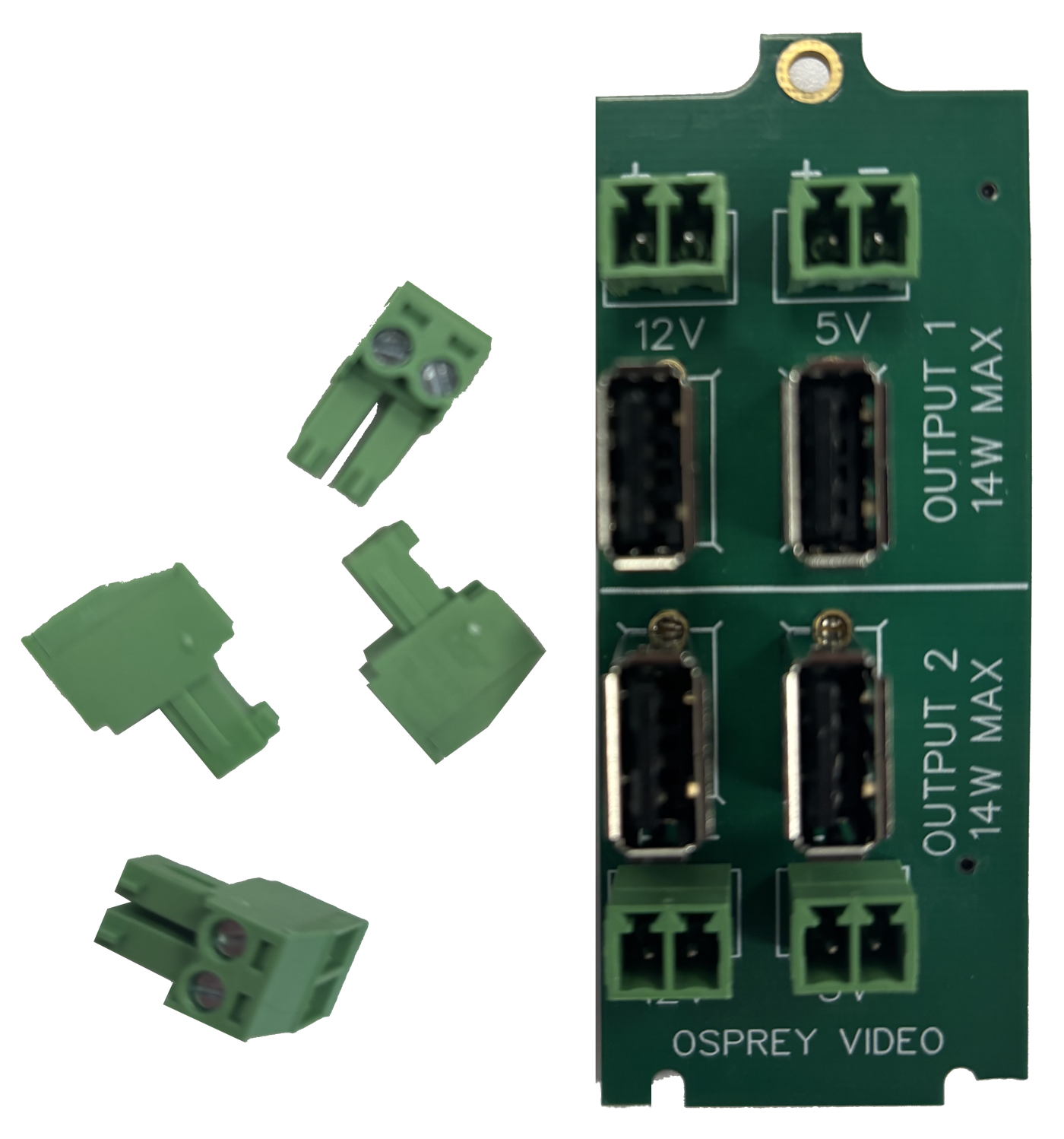

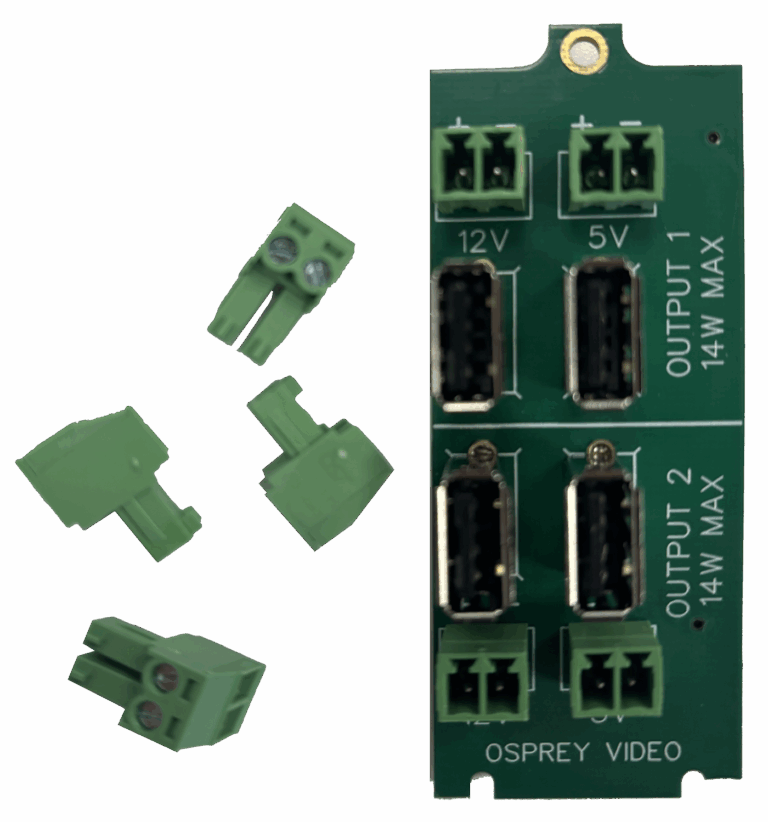

Power Ports:
Output 1: 5V and 12V Screw Terminals, 2x USB A for 5V
Output 2: 5V and 12V Screw Terminals, 2x USB A for 5V

Size:
openGear Standard Two Slots

Power:
0.6W at standby
30W max (including maximum output load of 28.8W)

Environment:
Operating Temperature: 0 to 40 C (32 to 104 F)
Storage Temperature -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: < 3000m (<10,000ft)

User Interface
openGear Dashboard control – Windows, Linux, macOS
  Output Overcurrent Status
  Card State
  Frame Connection State
  Manufacturer and Product Information
Front buttons for overcurrent reset

openGear Compatibility
OGx and OG3 up to 10 cards per frame

In the box:
openGear Card
Rear Module
Mounting Hardware
