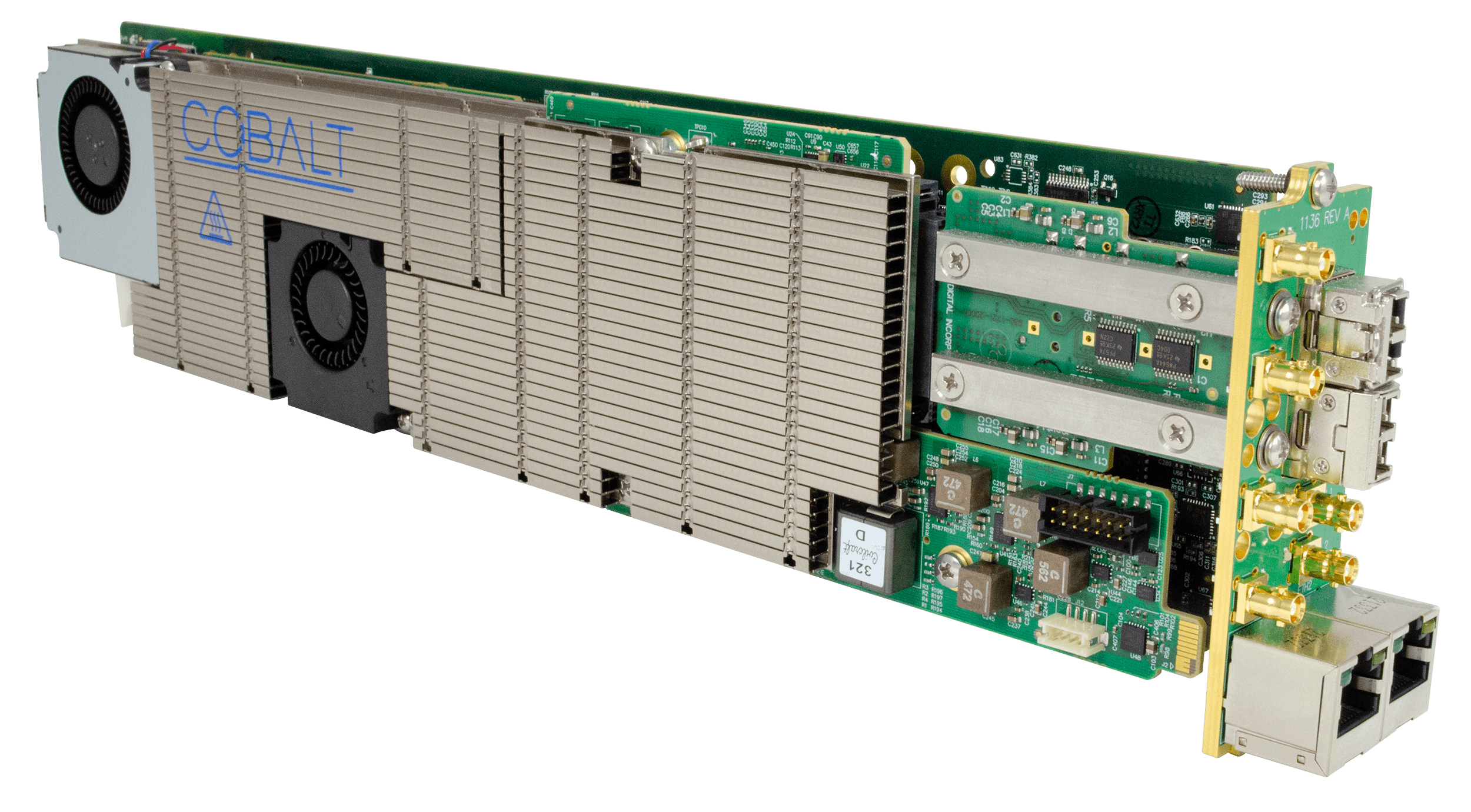

PACIFIC 9992-ENC-INDIGO
Software Definable Encoder in openGear® card format
Product by: Cobalt Digital
Cobalt Digital introduces our newest software definable encoding platform, the PACIFIC 9992-ENC-INDIGO. This platform is capable of handling up to 4 channels of 1080p encoding with additional +AVC licenses. The +AVC licenses can be upgraded to HEVC with the +HEVC license. (Includes one +AVC, two +MP1L2-AAC licenses-2 pairs and SMPTE ST 2110 Integrated Support Hardware).
If a card has 4 x +AVC and 4 x +HEVC licenses, it can be upgraded to 4K using the +4K license. Options (sold separately)
*Additional discount available with a BBG-1300-FR bundle.
FEATURES
- Up to 4x channels of 1080p encoding with additional +AVC licenses.
- 2) SFP cages for ST 2110 support (2x 25G multimode only SFP’s can be ordered at time of purchase)
- Five-Year Warranty
OPTIONS (sold separately)
- +AVC
- +HEVC
- +4K
- +MP1L2-AAC
- +ENCD-2.0
- +ENCD-5.1
- +RIST/ARQ-ENC
- +2022-FEC
- +422-ENC
- +SCTE104-TCP
- (*)Additional discount available with a BBG-1300-FR bundle.
REAR MODULES

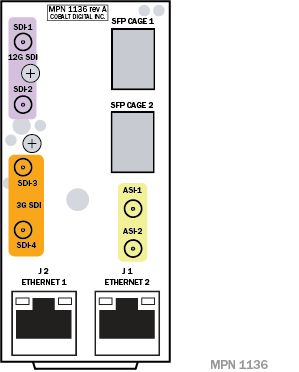

RM20-9992-ENC-INDIGO
20-Slot Frame Rear I/O Module (Standard-Width)- (2) 12G/6G/3G/HD-SD-SDI Coaxial Inputs,
- (2) 3G/HD/SD-SDI Coaxial Inputs,
- (2) ASI Output BNCs,
- (2) GigE Ethernet Media Ports,
- (2) 25G SFP 28 cage receptacles
- (All coaxial connectors HDBNC)
ORDERING INFORMATION
9992-ENC-INDIGO Software definable encoding platform (Includes one +AVC, two +MP1L2-AAC licenses-2 pairs and SMPTE ST 2110 Integrated Support Hardware).
9992-ENC-INDIGO-SFP Software definable encoding platform. Includes one +AVC, two +MP1L2-AAC licenses-2 pairs and SMPTE ST 2110 Integrated Support Hardware – Including 2x 25G multimode only SFPs.
RM20-9992-ENC-INDIGO
