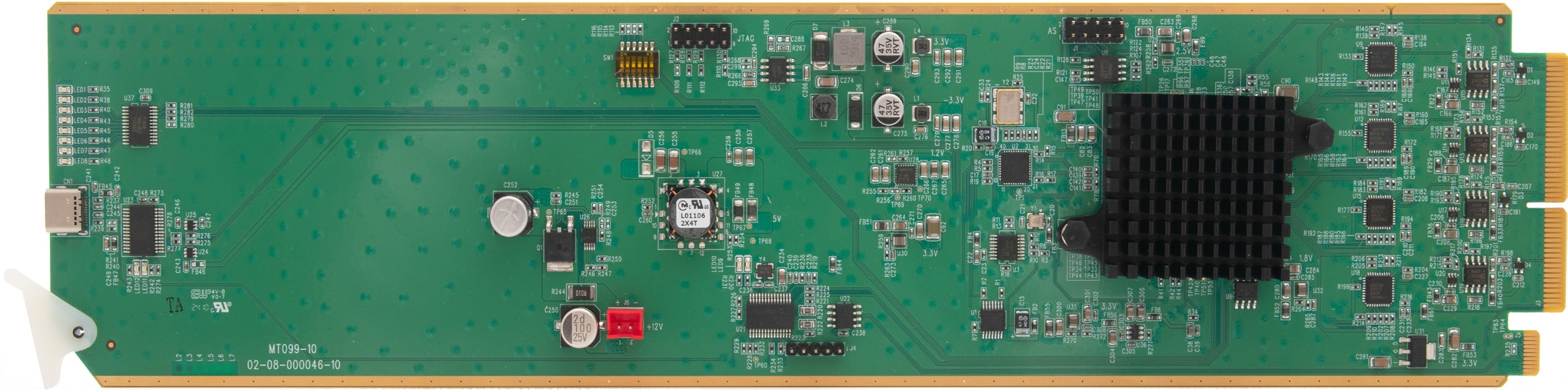

openGear Sync Generator (Model: OG-SYNC)
Provides multiple high-stability reference signals for broadcast and professional video environments
Product by: Apantac LLC
• openGear 3.0 card-based form factor
• DashBoard control enabled
• Four independent, configurable outputs for black burst or tri-level sync
• Supports NTSC/PAL black burst and HD tri-level sync
• Conforms to SMPTE 274M and 296M HD standards
• Conforms to SMPTE 170M(NTSC) and PAL standards
• Generates 48 KHz TTL-level Word clock output
• AES tone is available for AES outputs
• Generates sync signals with or without external reference
• Low power consumption
• 5 year limited warranty
Download Datasheet
• DashBoard control enabled
• Four independent, configurable outputs for black burst or tri-level sync
• Supports NTSC/PAL black burst and HD tri-level sync
• Conforms to SMPTE 274M and 296M HD standards
• Conforms to SMPTE 170M(NTSC) and PAL standards
• Generates 48 KHz TTL-level Word clock output
• AES tone is available for AES outputs
• Generates sync signals with or without external reference
• Low power consumption
• 5 year limited warranty
Download Datasheet
