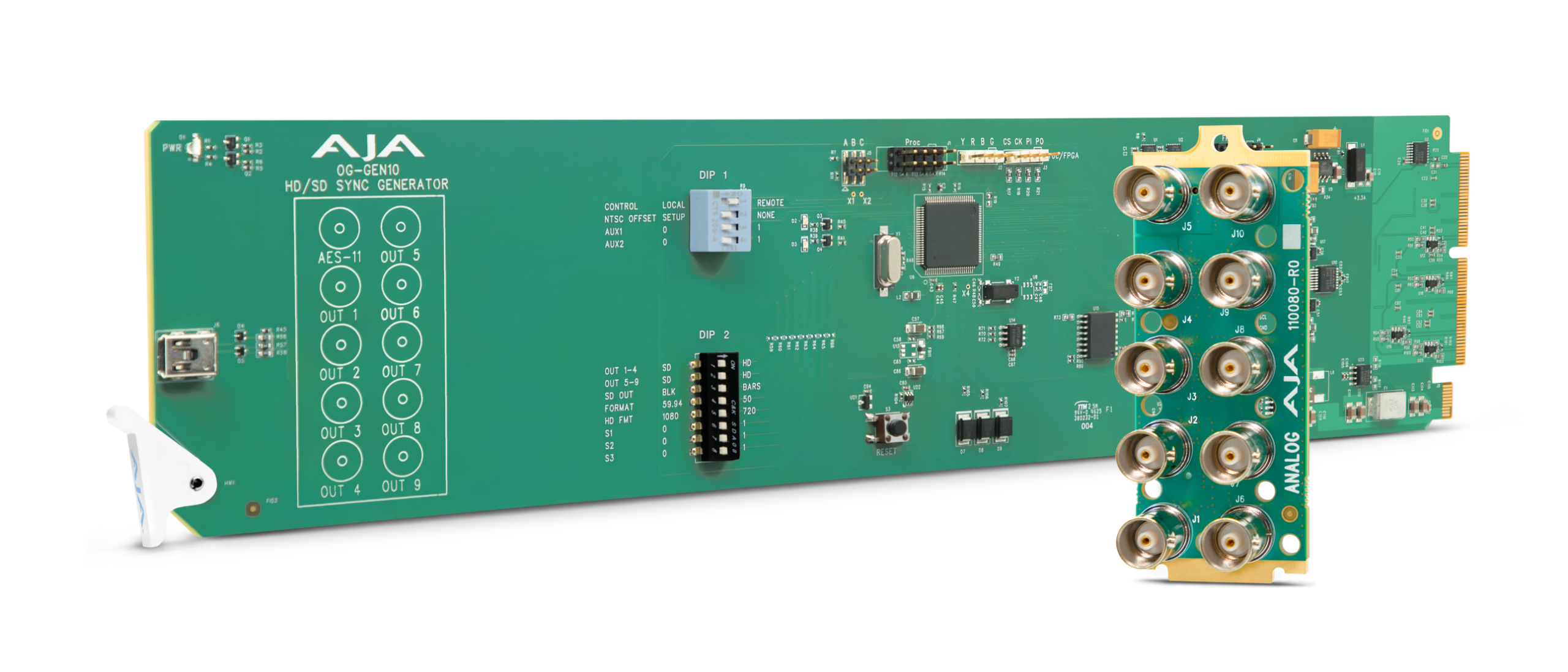

OG-GEN10
openGear HD/SD and AES-11 Sync Generator
Product by: AJA Video Systems, Inc.
Overview
The OG-GEN10 is a cost effective and flexible SD/HD/AES-11 sync generator. The OG-GEN10 features 10 total outputs comprised of 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between Silence and Tone. All outputs are in sync with each other and are sourced from an accurate master time base.
Features
- HD Tri-level sync generation
- SD Color Black or Color Bars
- 9x synchronized reference outputs
- Group 1 (1-4)
- Group 2 (5-9)
- Two groups of independently switchable outputs allow simultaneous HD and SD sync generation
- AES-11 output switchable between silence and tone

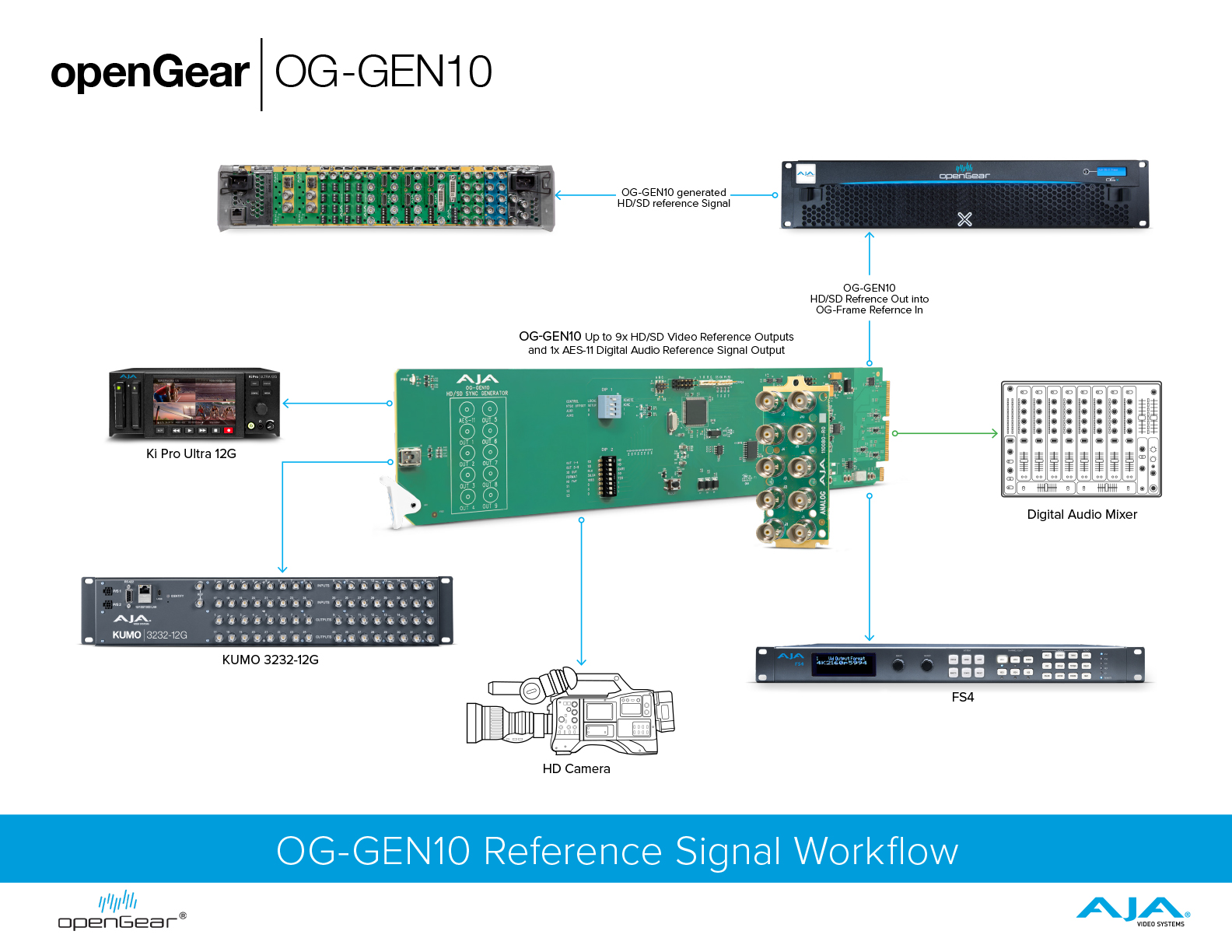

- Multiple outputs can synchronize entire systems without requiring a Sync DA
- External dip switch configuration
- Remote control via the Ross DashBoard software
- Optional Redundant power via the openGear frame
- Hot swappable
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
- Power: 6.75 watts max per card
- Five-year warranty
Industry-Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
OpenGear products are covered by a generous five year international warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
