OG-12G-AM
16-Channel AES/EBU Audio Embedder/Disembedder
Product by: AJA Video Systems, Inc.
Overview

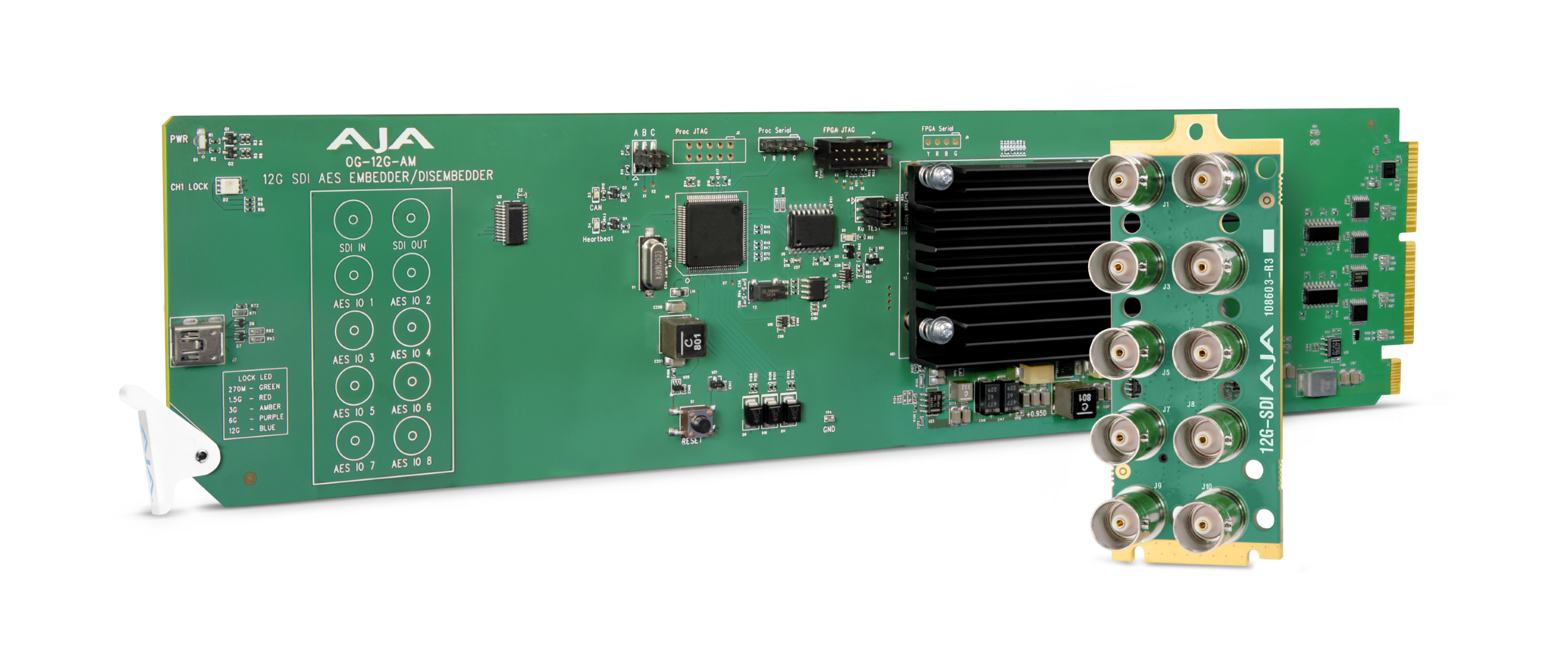

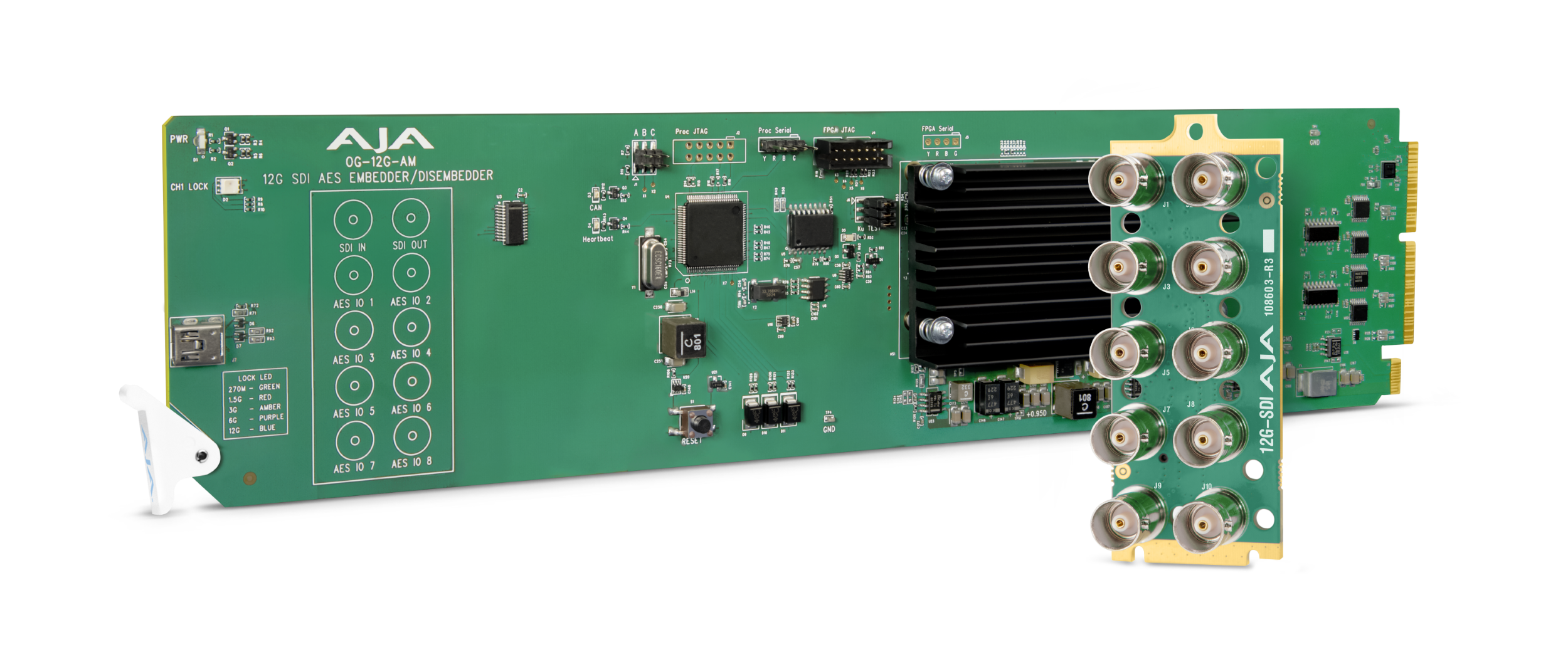

The OG-12G-AM is an 16-channel AES/EBU audio embedder/disembedder openGear card with support for 12G-SDI input and output up to 4K/UltraHD.

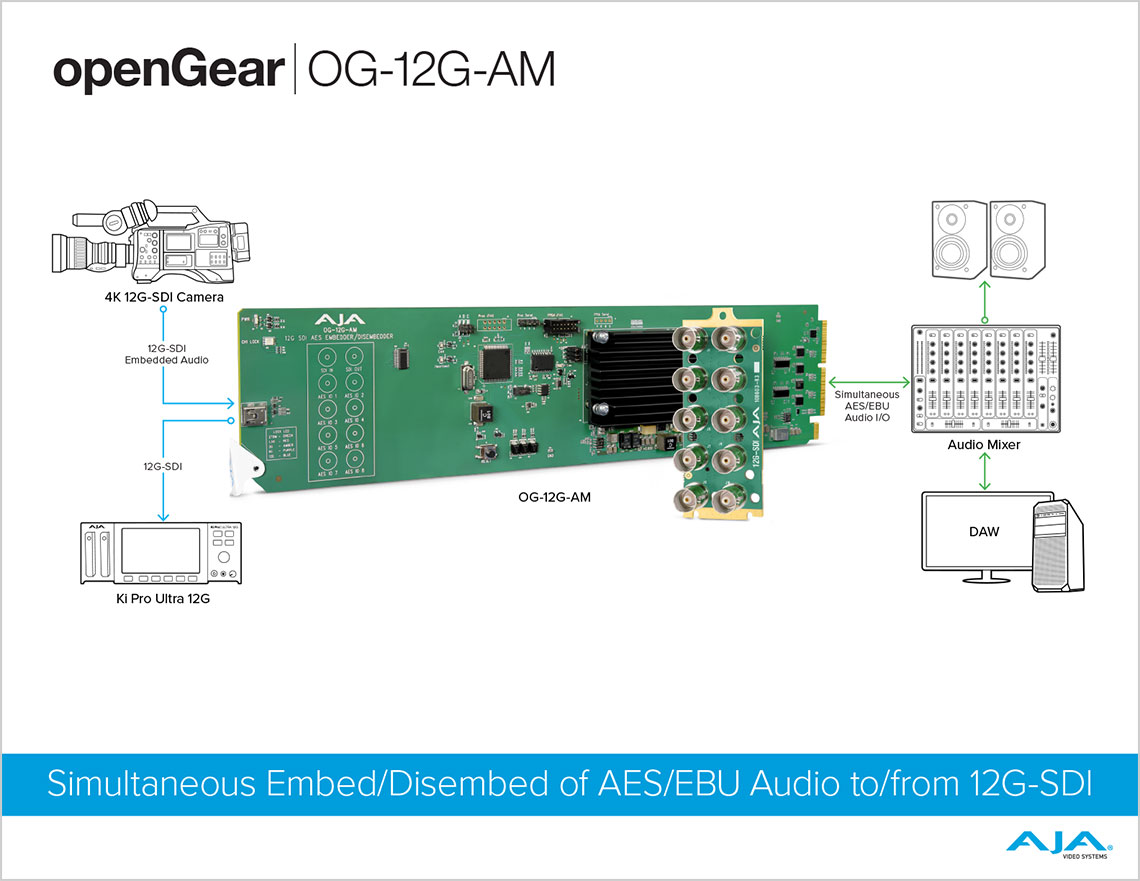

AES/EBU Audio embedding and disembedding is user selectable, on a channel pair basis, to either disembed 12G-SDI input audio or to embed input AES/EBU audio. It uses BNC connectors that can be set to perform audio input or output functionality.
The OG-12G-AM automatically detects and configures the input video standard.
Designed for use in high density openGear 2RU frames, including AJA’s OG-X-FR frame. Ross DashBoard Software supports Windows®, macOS®, and Linux® and provides convenient, configuration, monitoring, and control options for openGear cards and frames via a connected computer or over local network with DashBoard’s web UI.
Features
- 12G-SDI 16-channel AES/EBU embedder/disembedder
- 12G-SDI Input and Output up to 4K/UltraHD
- 16-channel balanced AES/EBU audio embedder/disembedder
- AES/EBU audio embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES/EBU audio
- Selectable AES/EBU audio levels
- Automatically detects and configures the input video standard
- 1.5G-SDI Internal Signal Generator allows the embedder path to function without needing to connect a source to the SDI input
- Monitor and control with Ross DashBoard software
- 6 watts max per card
- Five year warranty
- Only $1245 US MSRP*
Industry-Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
OpenGear products are covered by a generous five year international warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
