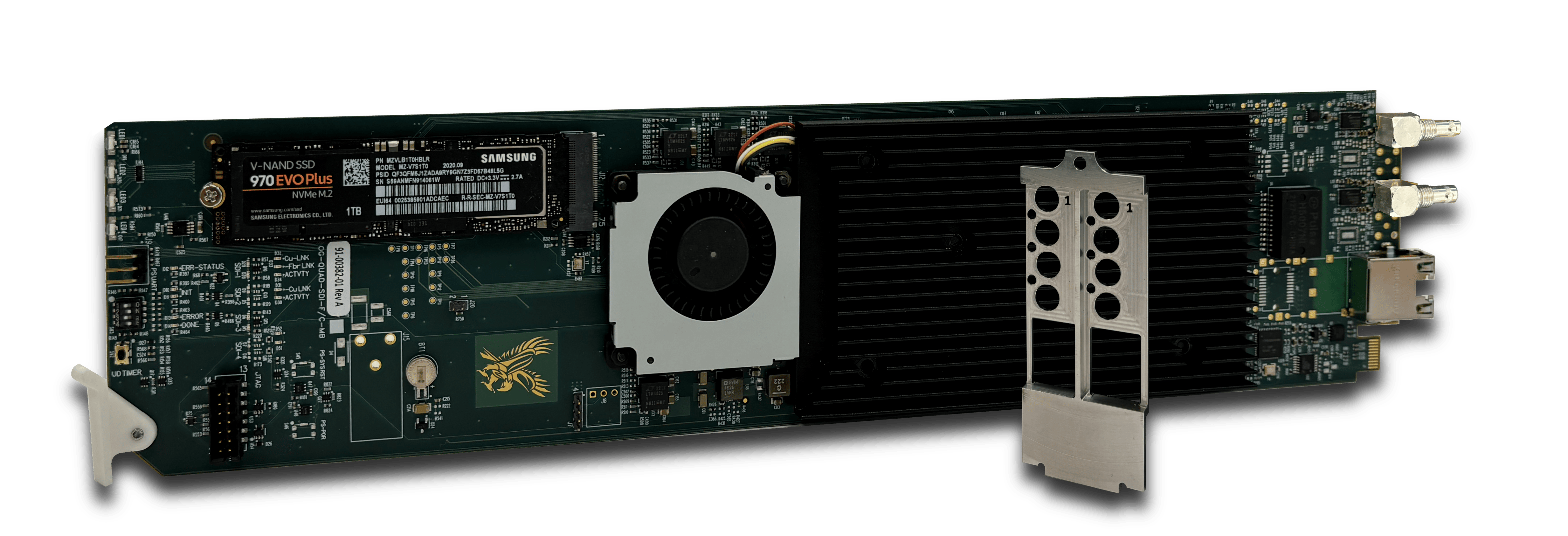

Osprey Talon OG-12G-2E

​Model: OG-12G-2E
SKU: 95-00530

Video Inputs:

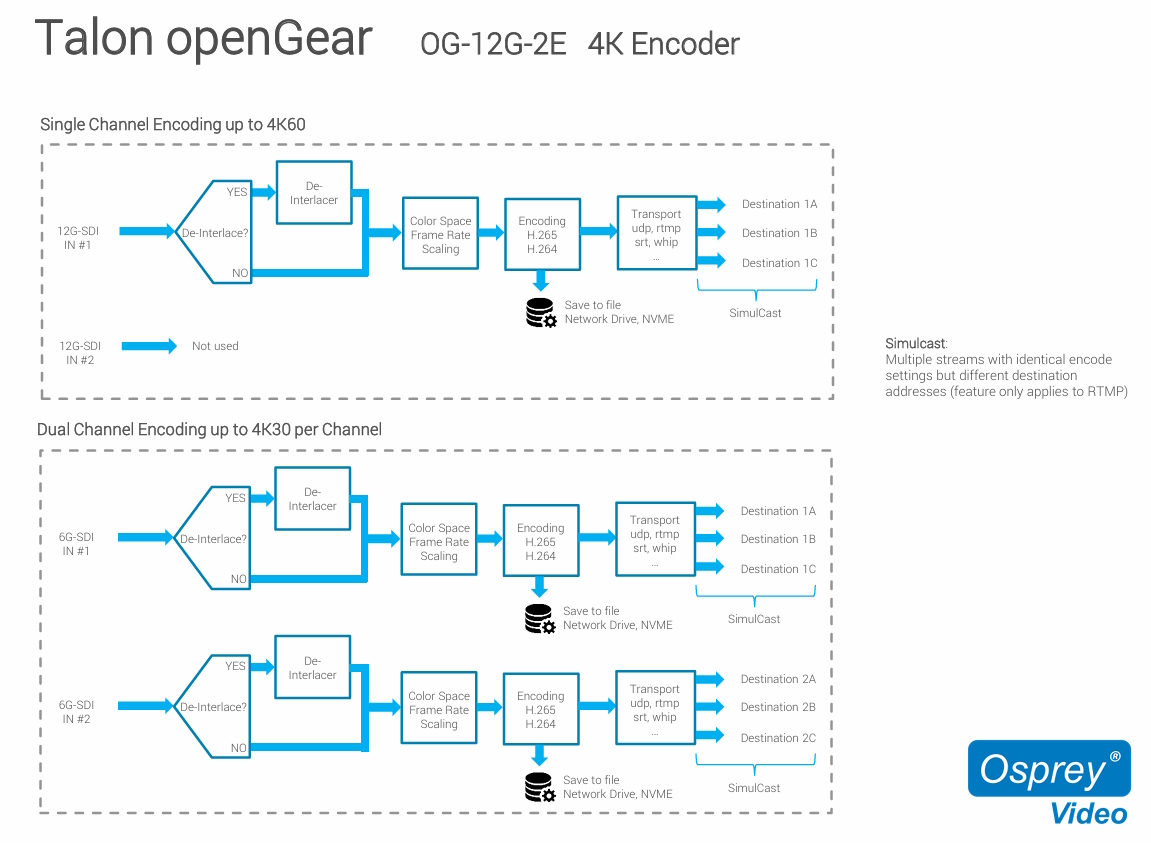

2x 6G-SDI (Dual Channel Encoding up to DCI30)
1x 12G-SDI (Dual Single Encoding up to DCI60)​
​​
Audio Inputs:
Embedded SDI 16Ch each input (8 stereo pairs)

I/O Connections:
HD-BNC for SDI
Ethernet #1 - RJ45
Ethernet #2 - openGear Frame

Encoding Video Formats:
PAL 576i, NTSC 480i
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i50, 59.94, 60 *
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
UHD 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
DCI 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
* interlaced encoding only supported HEVC point-to-point between Talon Encoder and Talon Decoder
​
Color:
Up to 10bit 4:2:2
REC 2020, REC 709
HDR (HLG)

Streaming Transports:
RTMP(S), UDP, RTP, RTSP, Zixi™, SRT™, WHIP

Video Processing:
Upscale/Downscale, Frame Rate Conversion, Deinterlacing

Video Compression:
H.264 (AVC), H.265 (HEVC)

Encoding Controls:
Bitrate up to 100Mbps
VBR & CBR
​
Audio Compression:
AAC-LC
OPUS Audio for UDP, RTP, SRT, Zixi, WHIP

Audio Sample Rate:
44.1kHz, 48kHz
Audio Bitrate 64kbps to 512kbps

Video Archiving:
NVME (Drive not included)
Network storage

Software Features:
Embedded Timecode from SDI to Transport Stream (SMPTE12M-2)
SCTE104 from SDI Embedded as SCTE35 in transport stream
Enhanced security features
Remote firmware upgrade from web
Network time protocol
JSON REST API for software integration
Password protected
Embedded CEA-708 closed caption support
SMPTE 2038 support
Customizable notice and consent banner
Secure HTTPS (SSL) web based management
Open VPN Client
Whitelist/Firewall for Management IP Access

Dual GigE Ethernet:
Ethernet Port #1: GigE RJ45 Ethernet
Ethernet Port #2: GigE openGear Frame - requires Ross Video MFC-OG3-N Advanced Networking Frame Controller

​In the Box:
​Encoder
Rear IO Module

Mechanical:
Density: 18 Cards per OG3 or OGx Frame (20 cards when ordered with customized OGx Frame)
Compatible with OG-X-FR, OG-3-FR and DFR8321 Frames
Operating Temperature -20C to 60C
Power 12V | 13W max

​
