OG-MCC10

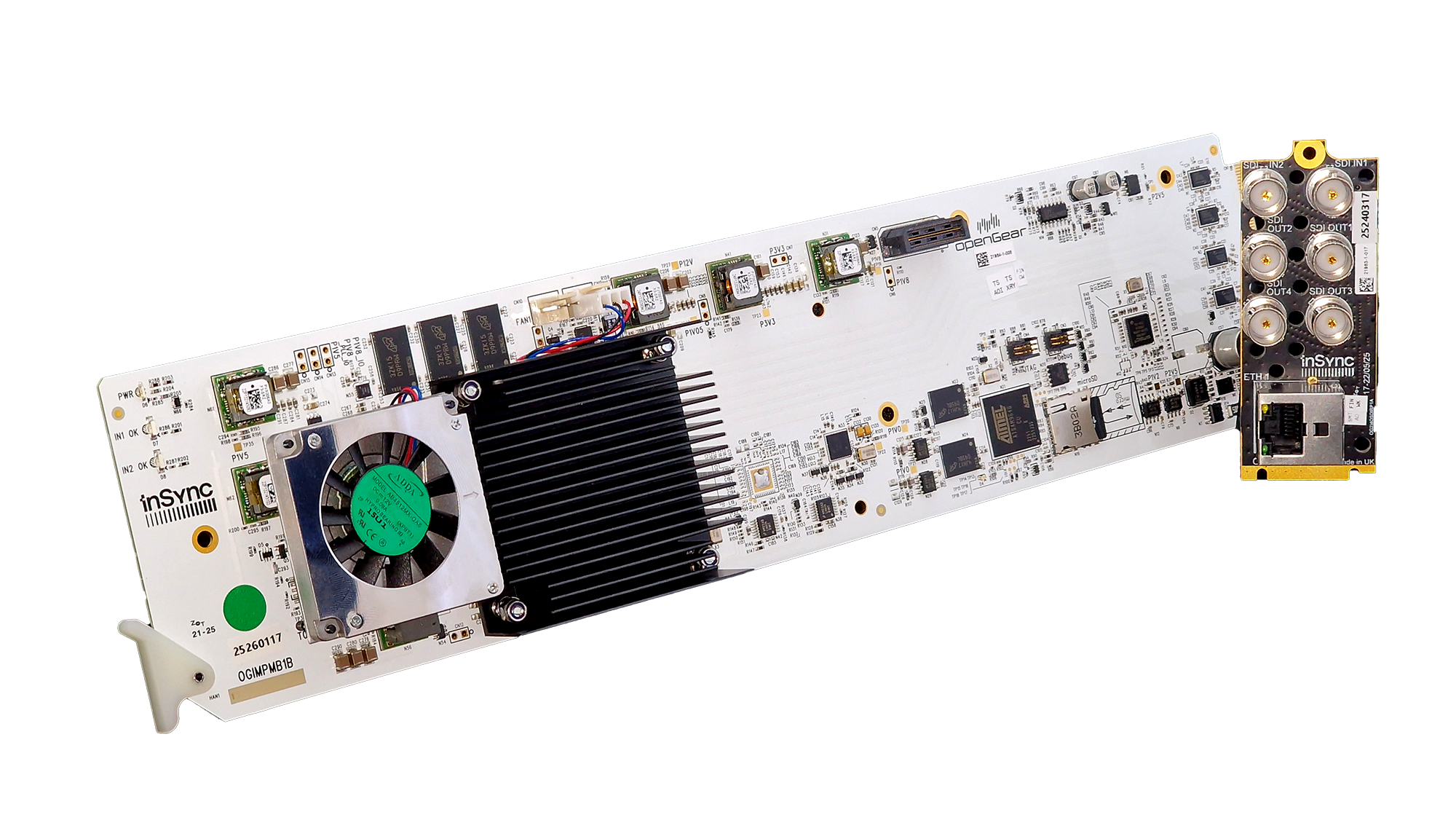

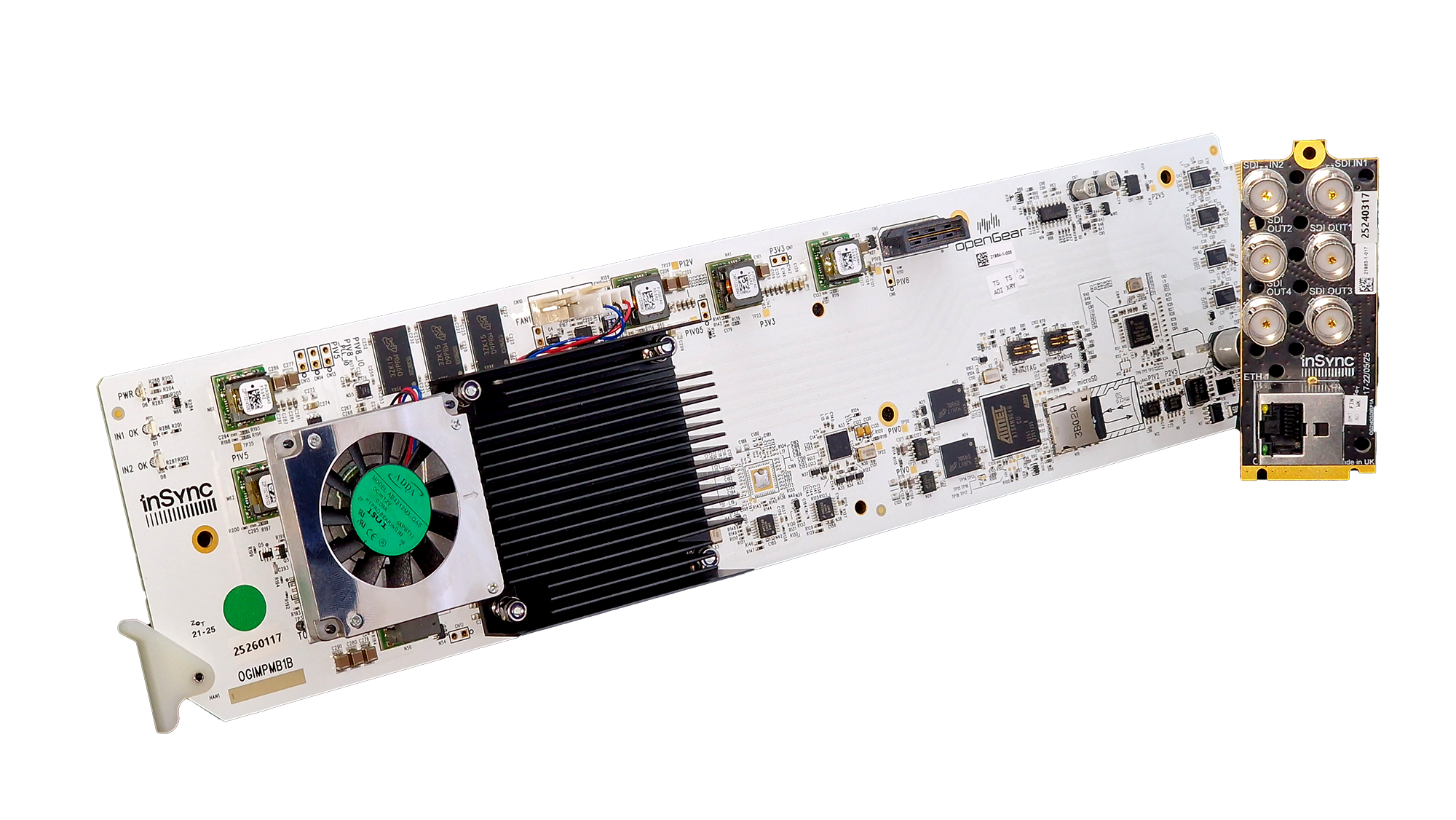

The OG-MCC10 from InSync provides high quality low latency motion compensated frame rate conversion for HD/3G-SDI signals in a compact modular form-factor.

Using the openGear OGX chassis enables 10 channels of conversion in 2RU rack space making it ideal for Broadcast or Professional live events and remote production applications needing to transmit or receive feeds to/from international locations.

Combining the quality deinterlacer / interlacer from InSync ensures the highest quality is received in the right format for end users wherever in the world they are.

The OG-MCC10 is simple to use and easy to configure and operate via Dashboard or Web interface, with auto-input detection meaning any input signal changes are automatically catered for.

Including a wide range of video and audio processing tools, and an SDR/HDR conversion option, also makes the module ideal for general multi-purpose signal conversion and processing tasks.

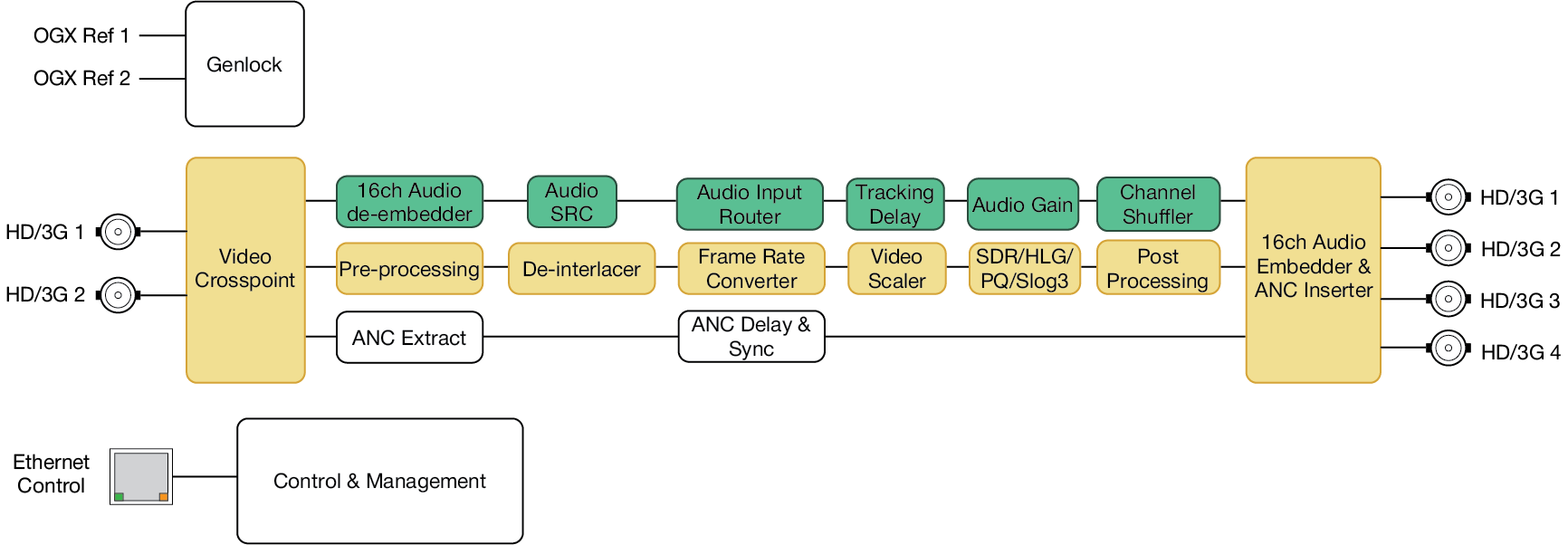

FEATURES

1. 1. • • • High quality frame rate conversion between 50/59.94/60Hz sources
          • High quality de-interlacing for 1080i conversion to 720p/1080p formats
          • Optional SDR/HDR and WCG translation, using on-board coefficients or custom LUT files, supporting HLG, PQ and Slog3 with BT709, BT2020 and P3-D65 support
          • 16 channel embedded audio support with per channel gain, delay, phase and shuffling features
          • Video proc. Amp features including conversion aperture control, vertical and horizontal enhancement, RGB Legalization, luma clipper and pre and post processing RGB colour correction
          • 2 x HD/3G-SDI inputs for main and back up selection with input status reporting
          • 4 x HD/3G-SDI outputs for multi-feed distribution, with default output on input loss of test pattern or mute
          • Tri-level and black burst reference inputs via openGear frame for accurate genlock with H&V control, freerun or clocklock options, and additional video delay up to 8 frames
          • Metadata handling for common datatypes including teletext and closed captions, plus a configurable ancillary data bridge
          • Dolby E passing with guard band alignment, and ST 2020 metadata support
          • ARC control with pan, tilt and zoom adjustments
          • Cadence control enables input or output 2:3, 2:2 cadence adjustment for film style applications
          • Timecode handling and generation
          • Test pattern and audio tone generators allow signal paths to be easily tested
          • 8 user selectable memory stores allowing easy reconfiguration between program changes
          • Dedicated 1GbE Ethernet port for Web interface, HDR LUT loading and software upgrades

SPECIFICATIONS

Inputs

SDI        2 x 1.5G or 3G 75Ω BNC

Reference         Tri-sync or Bi-sync reference input via openGear frame

Outputs

SDI        1.5G or 3G 75Ω BNC x 4

Card Control Port

Ethernet             10/100/1000 BaseT Ethernet RJ45

Supported Video Standards

1.5Gb/s             720p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

1.5Gb/s             1080p/psf at 23.98, 24, 25, 29.97, 30 fps

1.5Gb/s             1080i at 25, 29.97, 30 fps

3Gb/s Level A 1080p at 50, 59.94, 60 fps

Input cable distance

3G-SDI – 80m input cable length (TBC)

Processing Latency

50Hz to 59.94Hz conversion – 80ms (approx)

Mechanical

Weight TBA

Power Consumption 30W Max

ORDERING INFORMATION

Single channel Motion Compensated Frame Rate Converter Module: 2 HD/3G-SDI inputs, 4 HD/3G-SDI outputs, reference input, 1GbE Ethernet port, double width rear panel.

OPTIONS

1. Software license to enable HDR conversion features. Enables SDR/HDR translation between HLG/PQ/Slog3, BT709/BT2020 formats with custom LUT capability and clipping control.
