INDIGO OG-2110-BIDI4-GATEWAY

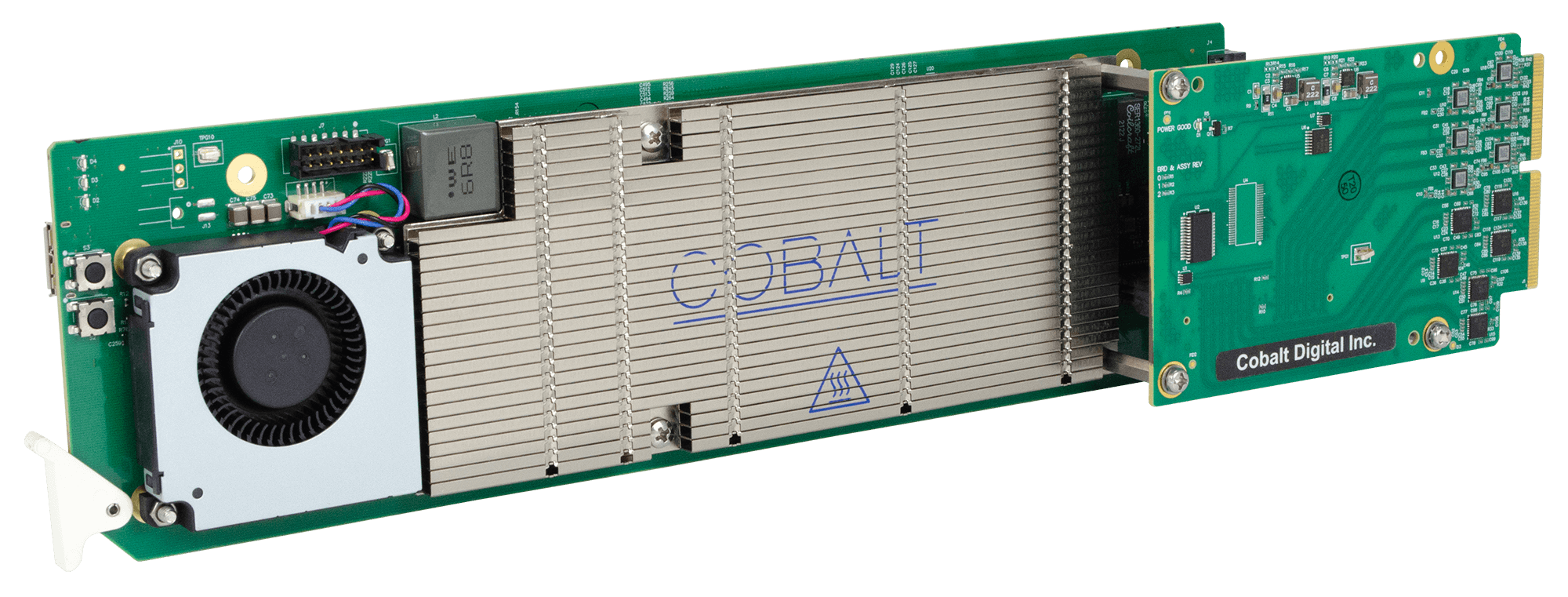

OG-2110-BIDI4-GATEWAY openGear® card
Product by: Cobalt Digital

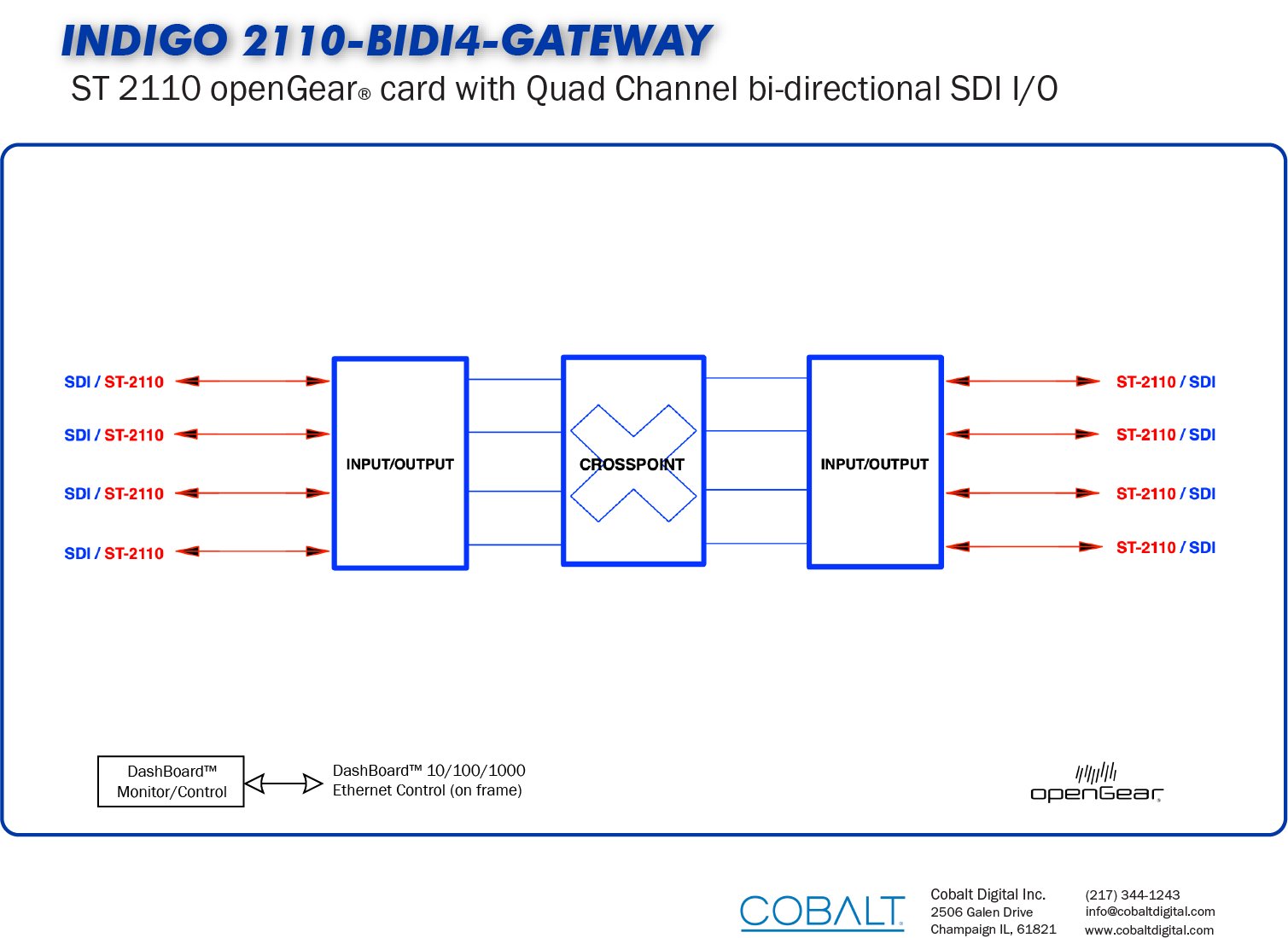

The Cobalt INDIGO OG-2110-BIDI4-GATEWAY has native SMPTE ST 2110 support in an openGear® format card with dual 25G Ethernet interfaces for ST 2022-7 support. The INDIGO OG-2110-BIDI4-GATEWAY is a bi-directional quad channel native ST 2110 interface to SDI I/O. The transmit and receive paths of the gateway can operate simultaneously. INDIGO OG-2110-BIDI4-GATEWAY also includes support for ST 2022-7 seamless redundancy switching, as well as IS-04/IS-05 NMOS for automatic discovery and configuration.
INDIGO ST 2110 is also supported on Cobalt’s 9904-UDX-4K and 9905-MPx processing cards and on the PACIFIC 9992-ENC-INDIGO encoder. The card features four 12G/6G/3G/HD/SD/SD-SDI Inputs, four 12G/6G/3G/HD/SD/SD-SDI Outputs, and two 25G SFP28 cages.
The free DashBoard™ software control also provides configuration and control of the unit via ethernet.
FEATURES
- Highly integrated 4 channel ST 2110 gateway openGear® card. With the powerful INDIGO OG-2110-BIDI4-Gateway card, all processing paths are operating simultaneously.
- Offers dual 25G Ethernet interfaces for ST 2022-7 support of 4K signals without the need for any type of compression and to support ST 2022-7 seamless redundancy switching for improved network reliability.
- Built-in NMOS support offers a straightforward interface to an existing network, with auto-discovery by the network management.
- High-density, compact openGear® card-based multi-channel transmit/receive solution, offering the standard features of redundant hot-swappable power supplies and hot-swappable cards.
- Five-Year Warranty
REAR MODULES

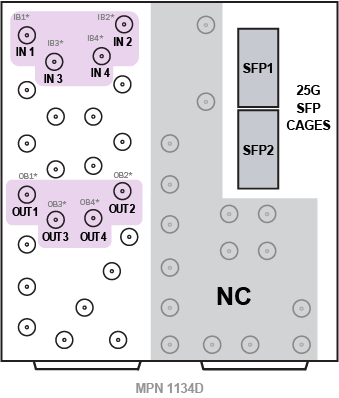

RM20-2110-GATEWAY-A 20-Slot Frame Rear I/O Module (Double-Width)
- (4) 12G/6G/3G/HD/SD/SD-SDI Inputs
- (4) 12G/6G/3G/HD/SD/SD-SDI Outputs
- (2) 25G SFP28 cage receptacles
All coaxial connectors HDBNC
Available for: INDIGO OG-2110-BIDI4-GATEWAY card. Supported on oGx, HPF-9500-GE and HPF-MAX openGear® frames.
*NOT Supported on HPF-9000 or HPF-9500-N frames*
SPECIFICATIONS
INDIGO OG-2110-BIDI4 Gateway
- (4) 12G/6G/3G/HD/SD/SD-SDI Inputs
- (4) 12G/6G/3G/HD/SD/SD-SDI Outputs
- (2) 25G SFP28 cage receptacles All coaxial connectors are HDBNC
