ARIA OG-AUD4-DANTE

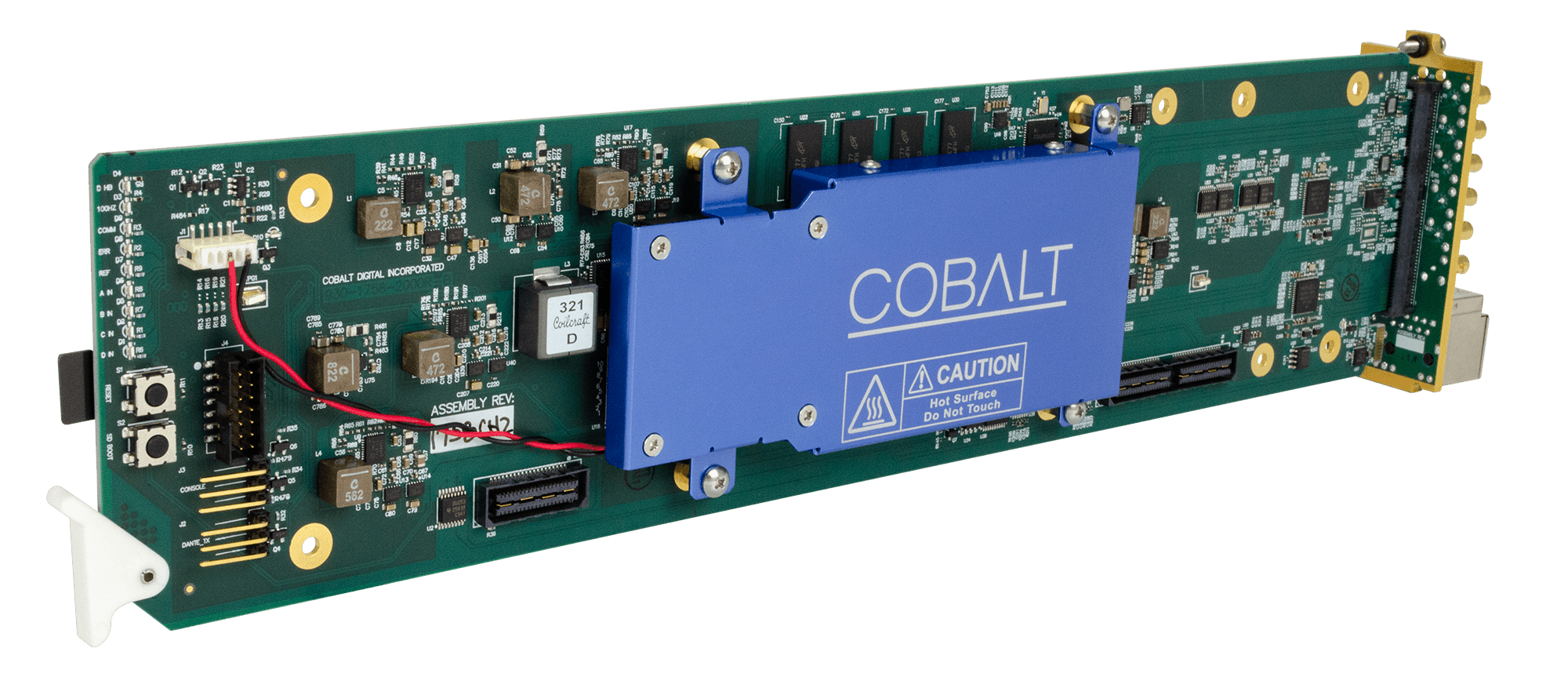

Cobalt Digital introduces the ARIA OG-AUD4-DANTE — a DANTE card in openGear® form factor. The COBALT ARIA OG-AUD4-DANTE is a 4x channel unit with 12G SDI and DANTE/ AES/MADI which can simultaneously embed and de-embed audio between SDI, DANTE, AES and MADI with flexible routing and mixing. This card also includes a built-in frame sync. This openGear® card features two gigabit Ethernet ports, and a 64×64 Dante channel matrix mixer.

The Cobalt ARIA OG-AUD4-DANTE — High-density, compact openGear® card-based solution, with multiple devices is able to be combined into a single frame for multi-channel operation, as well as offering the standard features of redundant hot-swappable power supplies and hot-swappable cards.

FEATURES

• Four SDI Inputs and Outputs, capable of up to 12G-SDI operation

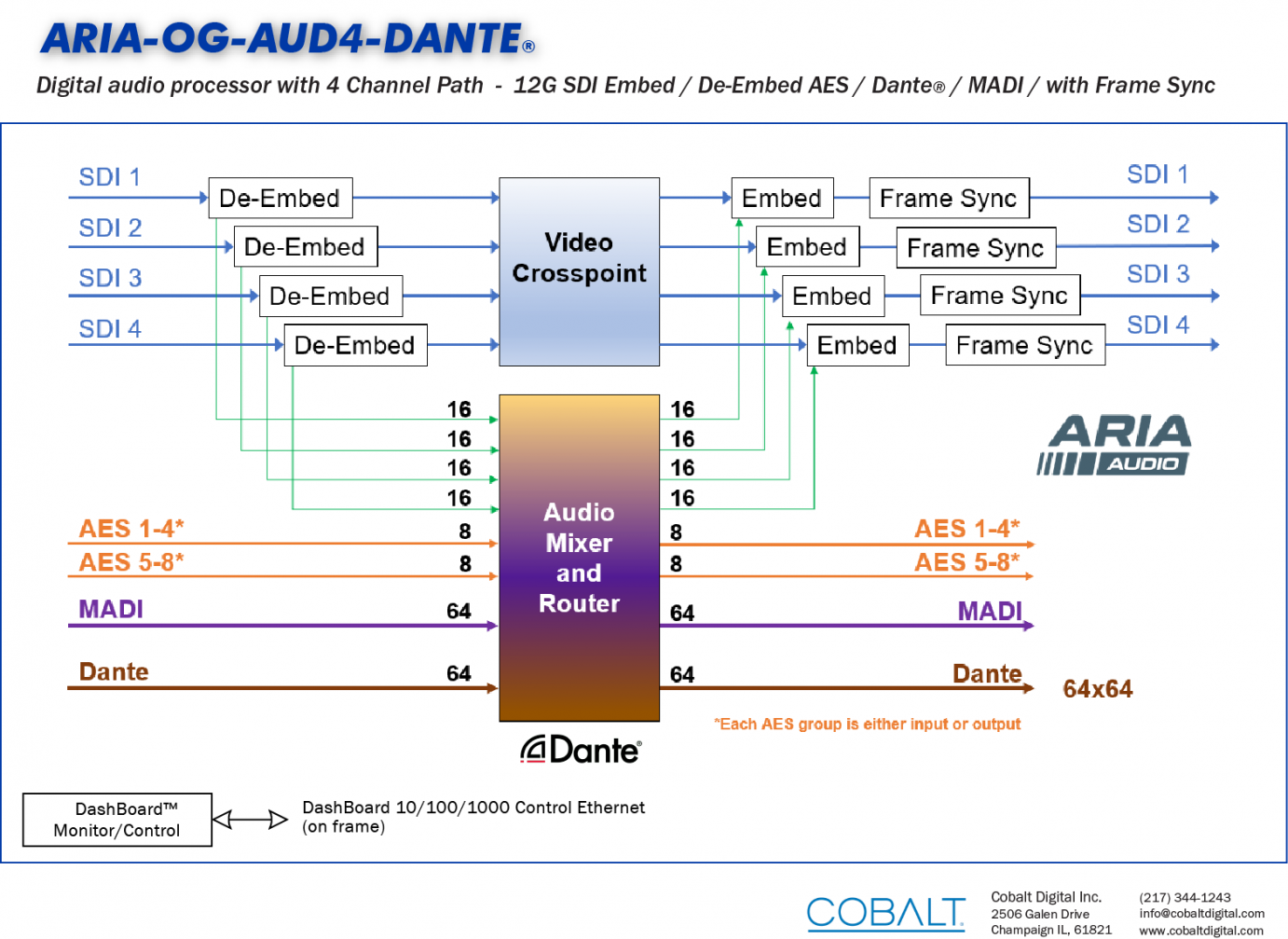

• Full routing and mixing between SDI, DANTE, MADI and AES MADI Input and Output
• SDI Output crosspoint – connect any Output to any Input
• 8 AES inputs/outputs – each block of 4 ports is software configurable as Input or Output
• Dual Gigabit Ethernet ports for redundant DANTE operation
• Simultaneous embedding and de-embedding
• DANTE matrix size: ARIA OG-AUD4-DANTE: 64×64
• DashBoard™ Ethernet control & set up
• High-density, compact openGear® card-based solution, with multiple devices able to be combined into a single frame for multichannel operation, as well as offering the standard features of redundant hot-swappable power supplies and hot-swappable cards
• Five-year Warranty

SPECIFICATIONS

12G/6G/3G/HD/SD-SDI Input/Outputs

• (4) 75Ω inputs (max)
• (4) 75Ω outputs (max)
• SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C.
• Return Loss: > 15 dB up to 1.485 GHz > 10 dB up to 3 GHz > 7 dB up to 6 GHz > 5 dB up to 12 GHz
• Input Cable Length: 45m Belden 1694A cable at 11.88 Gbps 120m Belden 1694A cable at 2.97 Gbps 240m Belden 1694A cable at 1.485 Gbps 400m Belden 1694A cable at 270 Mbps
• Output Signal Level: 800 mV ±10%
• DC Offset: 0 V ± 50 mV
• Rise and Fall Time @ 11.88 Gbps: < 45 ps
• Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI

  AES Audio Inputs/Outputs

• (8) 75Ω coaxial ports (max); port direction assignable as inputs or outputs in groups of 4 ports.

MADI Audio Inputs/Outputs

• (2) 75Ω coaxial ports See Rear Module illustrations for specific information.

Frame Reference Input

• (2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”

Note: All specifications are preliminary and subject to change.

REAR MODULES

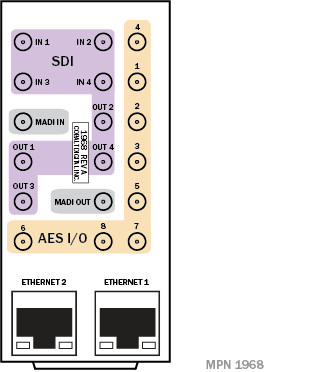

RM20-AUD4-DANTE-A-HDBNC

• 4) 12G SDI Inputs
• 4) 12G SDI Outputs
• 1) MADI Input
• 1) MADI Output
• 8) AES I/O ports
• All SDI, AES & MADI Connectors HDBNC
• 2) 1G Ethernet ports for Dante® networked audio
