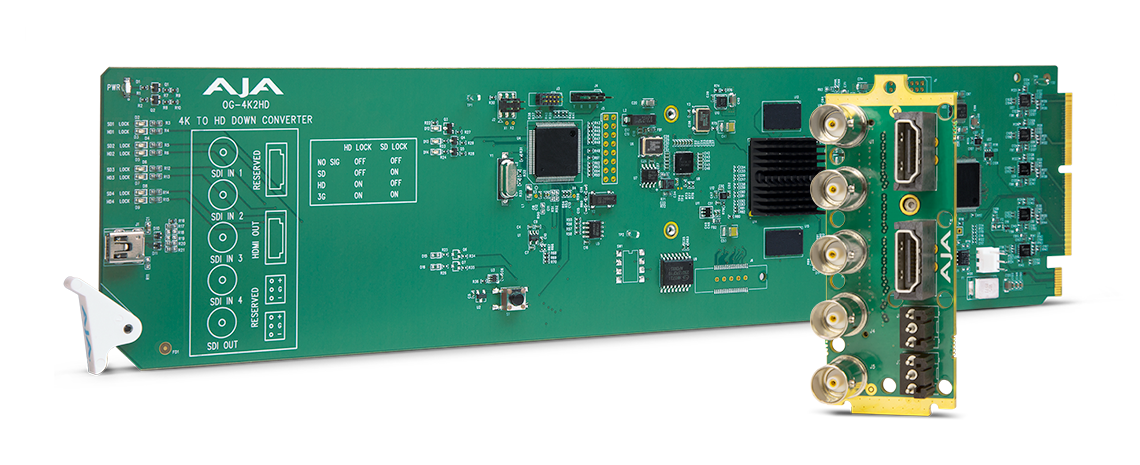

OG-4K2HD
openGear 4K/UltraHD-SDI to 3G-SDI Down-Converter with Dashboard support
Product by: AJA Video Systems, Inc.
OG-4K2HD is an openGear card that down-converts professional 3G-SDI 4K/UltraHD signals to HD resolution using AJA’s high-quality scaling for cost-effective monitoring and conversion. OG-4K2HD’s HD-SDI and HDMI outputs are live simultaneously, producing fantastic-looking HD images for on set monitoring or direct-to-air broadcast.
OG-4K2HD supports high frame rate (HFR) 4K/UltraHD inputs at 50 and 60fps and converts to HD outputs at 50 and 60fps for accurate viewing. OG-4K2HD’s configuration options allow extraction of an HD resolution image from the 4K input to provide a one-to-one pixel image for 4K focus checks on HD displays.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard Software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.
Features
- openGear compatible card
- 4K (4096×2160) and UltraHD (3840×2160) support
- Downconversion for supporting 4K on HD-SDI and HDMI devices
- Simultaneous HD-SDI and HDMI output
- Controlled by DashBoard network control software
- Aspect ratio conversion from full 4K to HD
- Supports up to 4K/UltraHD 50/60fps high-framerate input formats
- Compatible with OGX, OG3 and DFR-8321 openGear frames
Industry-Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
OpenGear products are covered by a generous five year international warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
