9978-ANC-MON

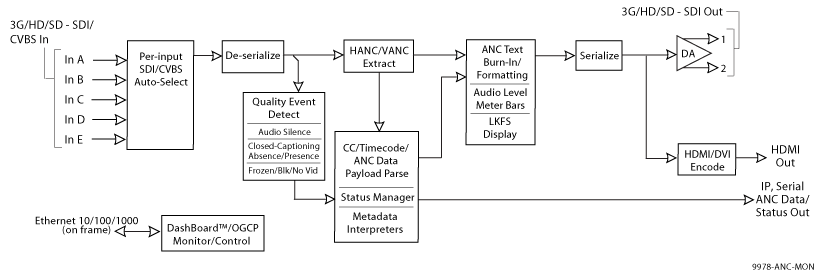

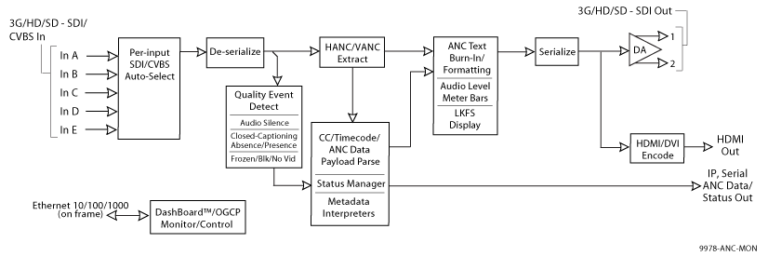

The Cobalt® 9978-ANC-MON 3G/HD/SD-SDI Ancillary Data Monitoring Probewith Multiple-Protocol Data Payload SDI/HDMI Display and Fault Detection/Forwarding provides an easy to use, economical solution that offers comprehensive ancillary data monitoring/”probing” to validate and ensure expected presence and handling of ancillary data in SDI streams.

Unlike expensive and hard to use waveform monitors or typical test systems, the 9978-ANC-MON is an economical openGear®-based solution that monitors and shows status in “plain language” on-screen overlays. The 9978-ANC-MON user interface is designed from the ground up to be used by everyday operations personnel and not just engineers. The status burn-in overlay is available on the card SDI output as well as a convenience HDMI output that can be directly connected to a wall monitor. In addition to its user interface, the 9978-ANC-MON can integrate with automation systems via its IP and SNMP interfaces.

The 9978-ANC-MON is an unprecedented first in the high-density openGear® based card form factor that fits in your existing openGear environment without the need for expensive, delicate, bulky test gear. The 9978-ANC-MON supports and offers monitoring for many data packages such as closed captioning, SCTE 104, 608-XDS, AFD and others, providing not just presence/absence status but also interpreters that parse the payload and display it as a burn-in. Also included standard is a continuously running display of ATSC A/85 LKFS loudness. Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.

Features

• Easy to use, economical, space-saving solution for comprehensive ancillary data monitoring/”probing”

• “Plain language” easy to understand status burn-in overlay displayed along with program video makes status monitoring easy. HDMI output allows use with standard consumer monitor panels.

• Quality Check provides immediate alert status for quality issues such as black/frozen frame or audio silence. Threshold and hold-off are user configurable.

• On-screen presence/absence of selected DID/SDIDs

• Fully flexible and configurable with user presets to simplify setup

• Closed Captioning, SCTE 104, AFD, and 608-XDS monitoring and payload interpret

• Full status forwarding to automated systems using IP and SNMP interfaces

• Audio level bars display and LKFS numeric display

• Low-power/high-density design – less than 18 Watts per card

• Remote control/monitoring via Dashboard™ software or OGCP-9000 remote control panels

• Five year warranty

Specifications

Power
< 18 Watts

Video Input/Outputs
Video Inputs: (5, max) 75Ω BNC; auto-detect/setup for 3G/HD/SD-SDI or CVBS
SDI Outputs: 75Ω BNC (rear module determines number of outputs)
HDMI Output: (1) HDMI output with audio embedding)
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
SDI Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A)
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz

Ordering Information

9978-ANC-MON   3G/HD/SD-SDI Ancillary Data Monitoring Probe with Multiple-Protocol Data Payload SDI/HDMI Display and Fault Detection/Forwarding

Rear Modules:

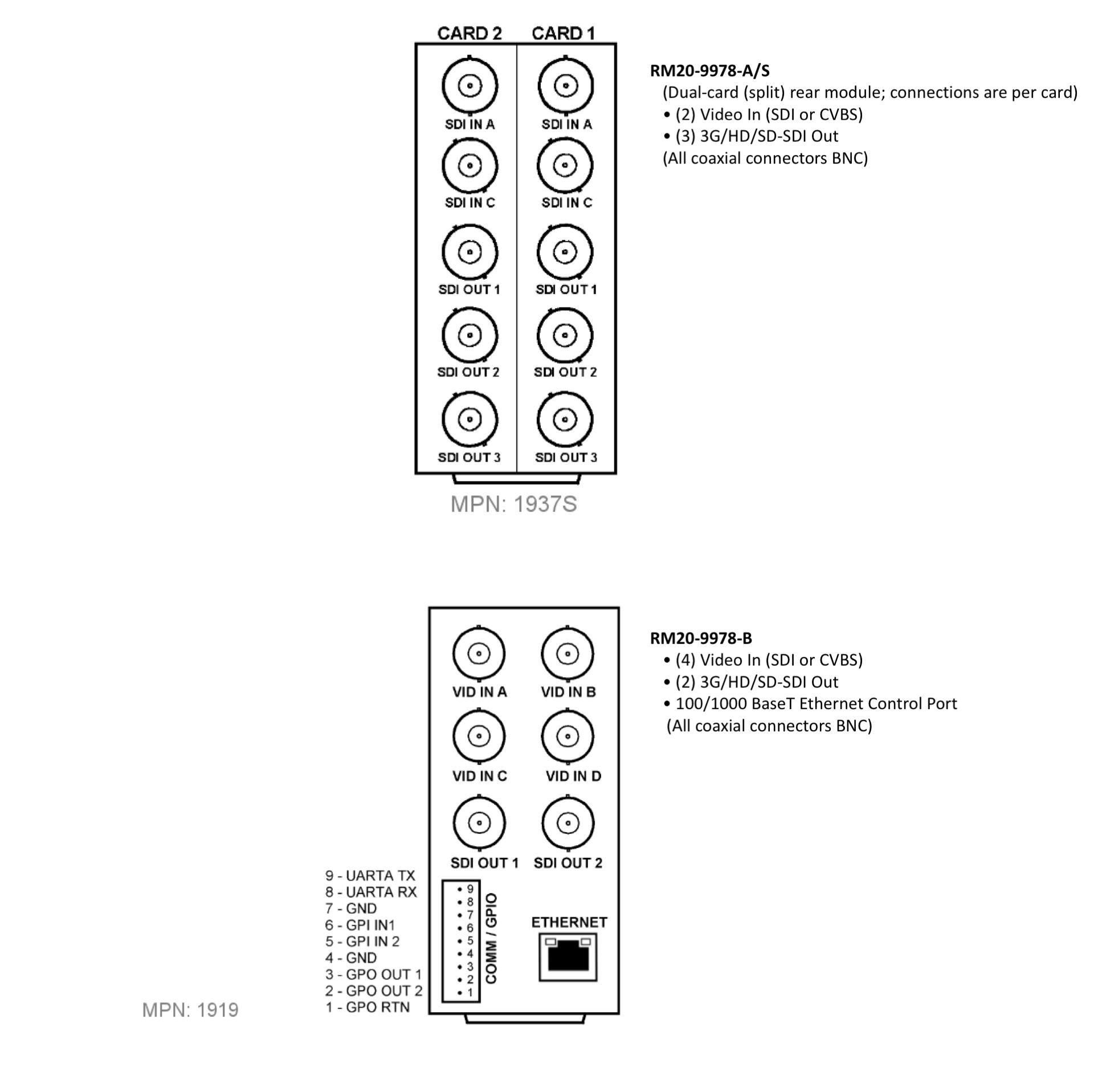

RM20-9978-A/S  20-Slot Frame Rear I/O Module (Split; supports 2 cards) (2) 3G/HD-SD-SDI/CVBS Input BNCs, (3) 3G/HD/SD-SDI Output BNCs (connections are per each Card 1 / Card 2 connector bank)

RM20-9978-B  20-Slot Frame Rear I/O Module (Standard Width) (4) 3G/HD-SD-SDI/CVBS Input BNCs, (2) 3G/HD/SD-SDI Output BNCs, Ethernet Port

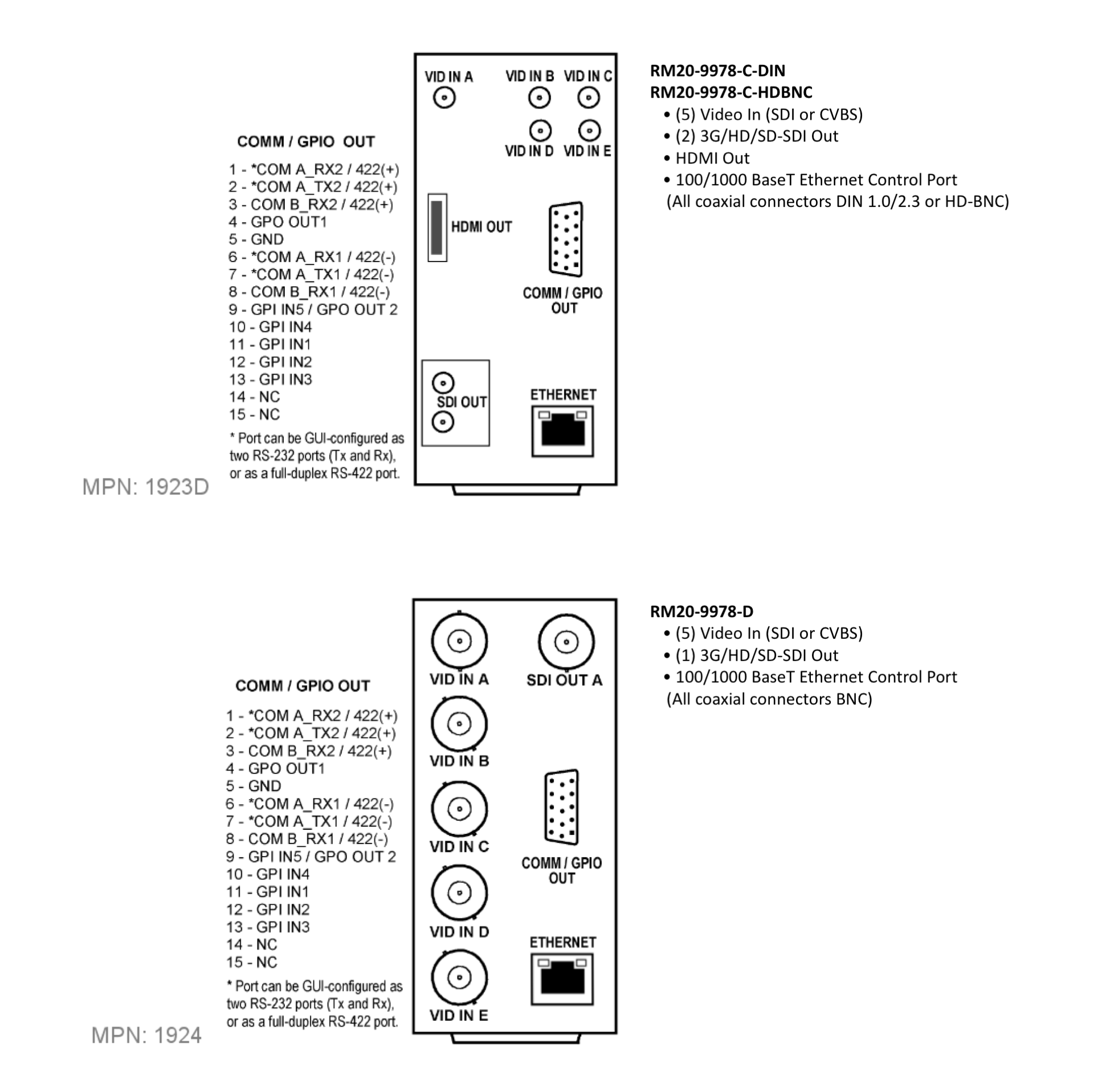

RM20-9978-C-DIN  20-Slot Frame Rear I/O Module (Standard Width) (5) 3G/HD-SD-SDI/CVBS Inputs, (2) 3G/HD/SD-SDI Outputs, HDMI Output, Ethernet Port (all coaxial connectors DIN 1.0/2.3)

RM20-9978-C-HDBNC  20-Slot Frame Rear I/O Module (Standard Width) (5) 3G/HD-SD-SDI/CVBS Inputs, (2) 3G/HD/SD-SDI Outputs, HDMI Output, Ethernet Port (all coaxial connectors HD-BNC)

RM20-9978-D  20-Slot Frame Rear I/O Module (Standard Width) (5) 3G/HD-SD-SDI/CVBS Input BNCs, (1) 3G/HD/SD-SDI Output BNC, Ethernet Port

RM20-9978-E  20-Slot Frame Rear I/O Module (Standard Width) (4) 3G/HD-SD-SDI/CVBS Input BNCs, (2) 3G/HD/SD-SDI Output BNCs, (1) 3G/HD/SDI Output BNC with Relay Bypass Protect

RM20-9978-F  20-Slot Frame Rear I/O Module (Standard Width) (2) 3G/HD-SD-SDI/CVBS Input BNCs, (1) 3G/HD/SD-SDI Out BNC with Relay Bypass Protect, (1) 3G/HD/SD-SDI Output BNC

RM20-9978-G/S-DIN  20-Slot Frame Rear I/O Module (Split; supports 2 cards) (4) 3G/HD-SD-SDI/CVBS Inputs, (2) 3G/HD/SD-SDI Outputs (Connections are per each Card 1 / Card 2 connector bank; all coaxial connectors DIN1.0/2.3)

RM20-9978-G/S-HDBNC  20-Slot Frame Rear I/O Module (Split; supports 2 cards) (4) 3G/HD-SD-SDI/CVBS Inputs, (2) 3G/HD/SD-SDI Outputs (Connections are per each Card 1 / Card 2 connector bank; all coaxial connectors HD-BNC)

RM20-9978-H-DIN  20-Slot Frame Rear I/O Module (Standard Width) (5) 3G/HD-SD-SDI/CVBS Inputs, (2) 3G/HD/SD-SDI Outputs, (1) 3G/HD/SD-SDI Output with Relay Bypass Protect, Ethernet Port (all coaxial connectors DIN 1.0/2.3)

RM20-9978-H-HDBNC  20-Slot Frame Rear I/O Module (Standard Width) (5) 3G/HD-SD-SDI/CVBS Inputs, (2) 3G/HD/SD-SDI Outputs, (1) 3G/HD/SD-SDI Output with Relay Bypass Protect, HDMI Output, Ethernet Port (all coaxial connectors HD-BNC)
